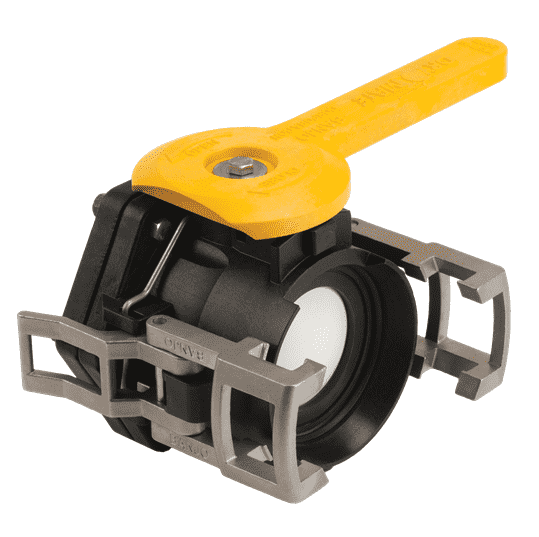

DM300DFP Banjo Polypropylene Dry-Mate Dry Disconnect 3" Full Port Female x 3" Female NPT Threads w/ FKM (viton type) Seals - Opening Thru Ball: 3" - 100 PSI

DM300DFP by Banjo | Dry-Mate® Dry Disconnects | 3" Full Port Female x 3" Female NPT Threads with FKM (Viton) Seals | Opening Thru Ball: 3" | 150 PSI | 300°F Max | Polypropylene

Save $52.35

$389.76

$389.76 - $389.76

$389.76

$337.41

$337.41 - $337.41

$337.41

Banjo Dry Disconnects - 3" Dry-Disconnect - Full Port - Polypropylene

Specifications for Variant SKU: DM300DFP Banjo
Shape (Orientation):	Straight
Ends Configuration:	3in Female NPT, 3in Female Dry-Mate Dry Disconnect
Material(s):	Polypropylene
Seal Material(s):	Viton/FKM

Applications:
Fluids Agriculture Industrial Pharmaceutical Chemical Processing
Features:
Dry-Mate Patented Lightweight Unrestricted 3" flow Minimal fluid spillage Easy to use Economical Reduces risk of exposure Wide range of chemical resistance Cannot be uncoupled in open position Spillage Data: 3" = 20 ml User friendly: Operating a Banjo Dry-Mate is simple. The handles interlock making it easy to identify which handle opens or closes first. No guessing involved! The two Dry-Mate halves couple together with cam levers for positive engagement. Design: The Banjo Dry-Mate is designed for safe and easy spill free connections. The "double ball" design allows maximum flow, while the cam lever style of connection is the most recognized fluid connector.

Part Number	Description	Max PSI	Pipe Size	Opening Thru Ball
DM300AFP	3" FP Male x 3" Female NPT Threads w/ FKM (viton type) Seals	150 PSI	3"	3"
DM300DFP	3" FP Female x 3" Female NPT Threads w/ FKM (viton type) Seals	300 PSI	3"	3"


Replacement Parts for DM300AFP
Item	Part Number	Description	Quantity Required
1	DM35254M	Male Body	1
2	V25060	Valve Stem Thrust Bearing	2
3	DM35255	Ball	1
4	VS25151C	Stem w/O-ring Grooves	1
5	A020V	#20 O-Ring	2
6	DM35258	Ball Seat	1
7	V35265	Body O-Ring FKM (viton type)	1
8	DM35288M	Handle Button	1
9	DM35281	Button Spring	1
10	DM35153M	Handle	1
13	V25502	3/4" Cap Plug	1
14	V35264	End Plate	1
15	V35258A	Ball Seat	1
16	V20010SS	3/8" - 16 x 2" HHCS	6
17	V20018	3/8" Lockwasher	6
18	V20019	3/8" Hex Nut	6
20	DP02063	#2 x 5/8" Type U Drive Screw	4
21	DM300CAP	Cap	1
