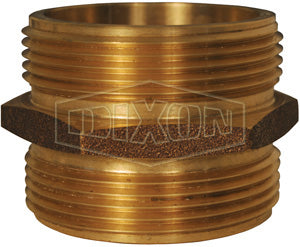

DMH2020 Dixon Cast Brass Double Male Hex Nipple - 2" Male NPT x 2" Male NPSH

DMH2020 Dixon Cast Brass Double Male Hex Nipple - 2" Male NPT x 2" Male NPSH

$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

Dixon Fire Fittings
Double Male Hex Nipple - Cast Brass
Specifications for Variant SKU: DMH2020 Dixon
Shape (Orientation): Straight
Ends Configuration: 2in Male NPT, 2in Male NPSH
Material(s): Brass
Part Number Male Thread Male Thread Weight
(Lbs.)
DMH7515 3/4" Male NPT 1-1/2" Male NPSH 0.5870
DMH7515F 3/4" Male NPT 1-1/2" Male NST(NH) 0.6000
DMH1076 1" Male NPT 3/4" Male GHT 0.3000
DMH1010 1" Male NPT 1" Male NPSH 0.3000
DMH1010F 1" Male NPT 1" Male NST(NH) 0.3300
DMH1015 1" Male NPT 1-1/2" Male NPSH 0.4800
DMH1015F 1" Male NPT Thread 1-1/2" Male NST(NH) 0.5500
DMH1025F 1" Male NPT Thread 2-1/2" Male NST(NH) 1.5950
DMH15S15S 1-1/2" Male NPSH 1-1/2" Male NPSH 0.4700
DMH1510 1-1/2" Male NPT 1" Male NPSH 0.5300
DMH1510F 1-1/2" Male NPT 1" Male NST(NH) 0.5400
DMH1515 1-1/2" Male NPT 1-1/2" Male NPSH 0.4900
DMH1515T 1-1/2" Male NPT 1-1/2" Male NPT 0.6000
DMH1515F 1-1/2" Male NPT 1-1/2" Male NST(NH) 0.5000
DMH1520 1-1/2" Male NPT 2" Male NPSH 1.0000
DMH1525F 1-1/2" Male NPT 2-1/2" Male NST(NH) 1.2800
DMH15F15S 1-1/2" Male NST(NH) 1-1/2" Male NPSH 0.4600
DMH15F15F 1-1/2" Male NST(NH) 1-1/2" Male NST(NH) 0.4500
DMH15F25F 1-1/2" Male NST(NH) 2-1/2" Male NST(NH) 1.2600
DMH2015 2" Male NPT 1-1/2" Male NPSH 0.8000
DMH2015F 2" Male NPT 1-1/2" Male NST(NH) 0.8200
DMH2020 2" Male NPT 2" Male NPSH 0.9500
DMH2025 2" Male NPT 2-1/2" Male NPSH 1.2500
DMH2020T 2" Male NPT 2" Male NPT 1.0300
DMH2025F 2" Male NPT 2-1/2" Male NST(NH) 1.4200
DMH2515 2-1/2" Male NPT 1-1/2" Male NPSH 2.1450
DMH2515F 2-1/2" Male NPT 1-1/2" Male NST(NH) 1.1000
DMH2520 2-1/2" Male NPT 2" Male NPSH 1.3300
DMH2525 2-1/2" Male NPT 2-1/2" Male NPSH 1.4000
DMH2525F 2-1/2" Male NPT 2-1/2" Male NST(NH) 1.4400
DMH2525T 2-1/2" Male NPT 2-1/2" Male NPT 1.4400
DMH2530 2-1/2" Male NPT 3" Male NPSH 1.8100
DMH2530T 2-1/2" Male NPT 3" Male NPT 2.0800
DMH2530F 2-1/2" Male NPT 3" Male NST(NH) 1.9000
DMH25F25F 2-1/2" Male NST(NH) 2-1/2" Male NST(NH) 1.5000
DMH25F30F 2-1/2" Male NST(NH) 3" Male NST(NH) 2.7400
DMH3025 3" Male NPT 2-1/2" Male NPSH 2.0800
DMH3025F 3" Male NPT 2-1/2" Male NST(NH) 2.2700
DMH3030 3" Male NPT 3" Male NPSH 3.4500
DMH3030F 3" Male NPT 3" Male NST(NH) 2.4400
DMH3030T 3" Male NPT 3" Male NPT 3.4500
DMH4040 4" Male NPT 4" Male NPSH 5.5300
DMH40F40F 4" Male NST(NH) 4" Male NST(NH) 5.9500
DMH4040F 4" Male NPT 4" Male NST(NH) 5.3300
DMH4045F 4" Male NPT 4-1/2" Male NST(NH) 5.6300
DMH4040T 4" Male NPT 4" Male NPT 4.0500
DMH5050F 5" Male NPT 5" Male NST(NH) 8.6300
DMH6045F 6" Male NPT 4-1/2" Male NST(NH) 9.1500
DMH6060F 6" Male NPT 6" Male NST(NH) 10.5900
DMH6060 6" Male NPT 6" Male NPSH 10.5900
DMH6060T 6" Male NPT 6" Male NPT 10.5900
