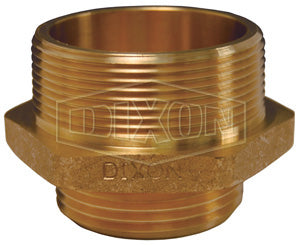

DMH3025F-D Dixon Cast Brass Double Male Hex Nipple - 3" Male NPT x 2-1/2" Male NST(NH) (Domestic)

DMH3025F-D Dixon Cast Brass Double Male Hex Nipple - 3" Male NPT x 2-1/2" Male NST(NH) (Domestic)

Save $13.76 Save $13.76
$167.91
$167.91 - $167.91
$167.91
$154.15
$154.15 - $154.15
$154.15

Dixon Fire Fittings
Double Male Hex Nipples - Cast Brass - Domestic

Made to approved Dixon Powhatan specifications.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: DMH3025F-D Dixon
Shape (Orientation): Straight
Ends Configuration: 2-1/2in Male NST, 3in Male NPT
Material(s): Brass
Part Number Male Thread Male Thread Powhatan Part #: Weight
(Lbs.)
DMH1010F-D 1" NPT 1-1/2" NST (NH) 14-146-01084 0.3400
DMH1015F-D 1" NPT 1-1/2" NST (NH) 14-146-00090 0.5600
DMH1515-D 1-1/2" NPT 1-1/2" NPSH 14-146-00110 0.5000
DMH1515F-D 1-1/2" NPT 1-1/2" NST (NH) 14-146-00115 0.5950
DMH1525F-D 1-1/2" NPT 2-1/2" NST (NH) 14-146-00187 2.5800
DMH15F15F-D 1-1/2" NST (NH) 1-1/2" NST (NH) 14-146-00132 0.6000
DMH15F15S-D 1-1/2" NST (NH) 1-1/2" NPSH 14-146-00118 0.5500
DMH15F25F-D 1-1/2" NST (NH) 2-1/2" NST (NH) 14-146-00188 2.5600
DMH2015F-D 2" NPT 1-1/2" NST (NH) 14-146-00157 0.8600
DMH2020-D 2" NPT 2" NSPH 14-146-00167 1.0000
DMH2025F-D 2" NPT 2-1/2" NST (NH) 14-146-00367 1.5900
DMH2515F-D 2-1/2" NPT 1-1/2" NST (NH) 14-146-00192 2.3600
DMH2525F-D 2-1/2" NPT 2-1/2" NST (NH) 14-146-00221 1.5200
DMH25F25F-D 2-1/2" NST (NH) 2-1/2" NST (NH) 14-146-00259 1.6800
DMH3025F-D 3" NPT 2-1/2" NST (NH) 14-146-00294 2.5400
DMH3030F-D 3" NPT 3" NST (NH) 14-146-00313 4.0600
DMH4045F-D 4" NPT 4-1/2" NST (NH) 14-146-00354 7.2200
DMH6060F-D 6" NPT 6" NST (NH) 14-146-00431 4.6000
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
