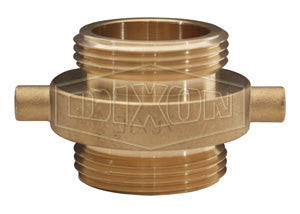

DMP25F25T Dixon Cast Brass Double Male Pin Lug - 2-1/2" Male NST(NH) x 2-1/2" Male NPT

DMP25F25T Dixon Cast Brass Double Male Pin Lug - 2-1/2" Male NST(NH) x 2-1/2" Male NPT

Save $87.21 Save $87.21
$218.02
$218.02 - $218.02
$218.02
$130.81
$130.81 - $130.81
$130.81

Dixon Fire Fittings
Brass Double Male Adapter - Pin Lug - Cast Brass
Specifications for Variant SKU: DMP25F25T Dixon
Shape (Orientation): Straight
Ends Configuration: 2-1/2in Male NST, 2-1/2in Male NPT
Material(s): Brass
Part Number Male Thread Male Thread Weight
(Lbs.)
DMP1515F 1-1/2" NST (NH) 1-1/2" NST (NH) 1.0500
DMP15F15T 1-1/2" NST (NH) 1-1/2" NPT 1.1200
DMP1515 1-1/2" NPSH 1-1/2" NPSH 1.0050
DMP15S15T 1-1/2" NPSH 1-1/2" NPT N/A
DMP15F15S 1-1/2" NST (NH) 1-1/2" NPSH 1.1200
DMP2525F 2-1/2" NST (NH) 2-1/2" NST (NH) 2.4900
DMP25F25S 2-1/2" NST (NH) 2-1/2" NPSH 2.0700
DMP25F25T 2-1/2" NST (NH) 2-1/2" NPT 2.1800
DMP2525 2-1/2" NPSH 2-1/2" NPSH 1.8100

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
