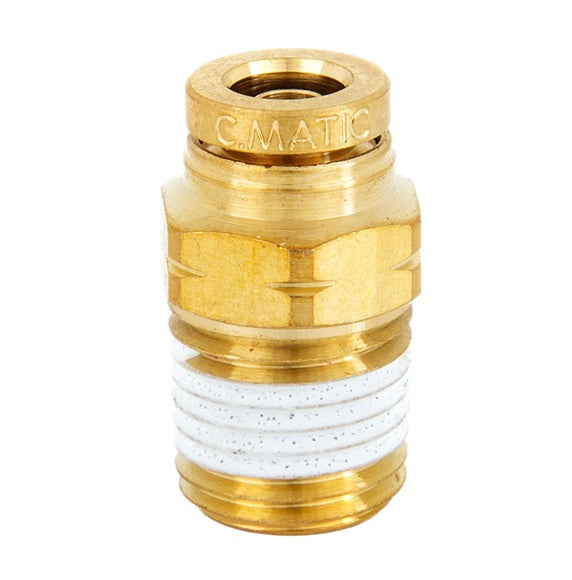

DOT-BRMC-0804 Kuri-Tec ENDURE™ by Kuriyama | DOT-BRMC Series | DOT Air Brake Push-to-Connect Fitting | 1/2" Tube OD x 1/4" Male NPTF | Brass | (Pack of 25)

Save $21.89

$172.49

$172.49 - $172.49

$172.49

$150.60

$150.60 - $150.60

$150.60

Kuri Tec® by Kuriyama
DOT Air Brake Push-to-Connect Fitting | DOT-BRMC Series | Male Push-to-Connect x Male NPTF

Designed to work with Endure™ Air Brake tubing or other tubing that complies with DOT FMVSS 106 and meets the performance requirements of SAE J844.

Package Quantity: 10 Units

Specifications for Variant SKU: DOT-BRMC-0804 Kuriyama \| 25 \|
Brand:	ENDURE, Kuri-Tec
Series:	DOT-BRMC Series
Shape (Orientation):	Straight
Ends Configuration:	1/2in Push-to-Connect, 1/4in Male NPTF
Material(s):	Brass
Seal Material(s):	Buna-N/Nitrile Rubber
Applicable Specs & Approvals:	D.O.T. FMVSS 106, SAE J844
Compatible with the following Series:	151 Series \| 251 Series

Applications:
Pneumatic circuits for truck and trailers: air suspension, braking systems, transmissions, locking doors and windows, seat adjustment, instrumentation, air conditioning systems, horn, wiper motors, valves, cylinders and accessories. Suitable for all air assisted applications except those designed for use between frame and axle or between towed and towing vehicles.
Construction:
Brass housing. Polyethylene holding ring. Nitrile (NBR) seals.
Specifications:
Temperature Range: -58°F (-50°C) to +212°F (+100°C) Max. Pressure: 290 PSI Vacuum Rating: 29 inHg
Recommended Tubing:
Designed to work with Endure™ Air Brake tubing or other tubing that complies with DOT FMVSS 106 and meets the performance requirements of SAE J844.

Note: The "Tube ID (in)" column heading refers to "Tube Support ID (in)"
