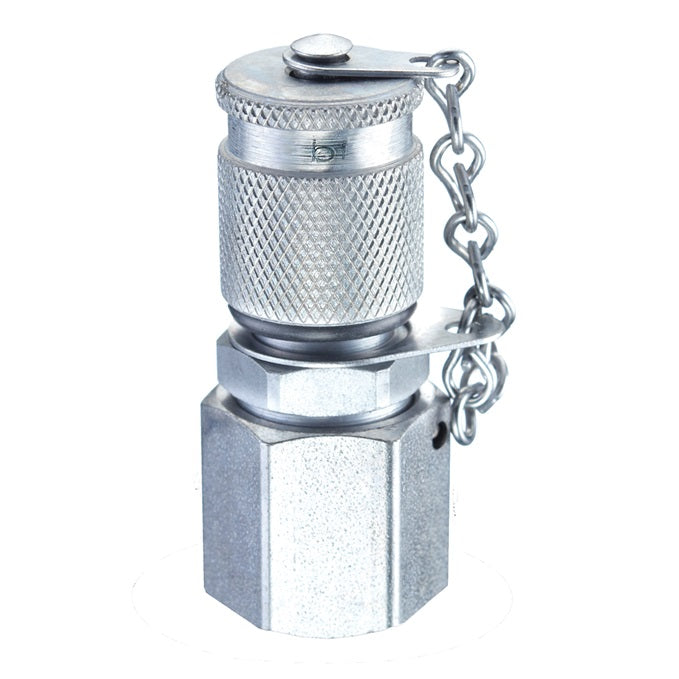

DP6504-12 by Brennan Inc. | -12 Female JIC | Swivel Test Coupling with Cap | Steel

DP6504-12 by Brennan Inc. | -12 Female JIC | Swivel Test Coupling with Cap | Steel

$51.91 - $51.91
$51.91
$65.87
$65.87 - $65.87
$65.87

Brennan Inc.
Test Point Fittings: DP6504 - Female JIC Swivel Test Coupling (with Cap) - DP-JIC
Specifications for Variant SKU: DP6504-12 Brennan
Ends Configuration: 3/4in Female JIC
Material(s): Steel
Part Number Material Pipe Size JIC Size G UNF H Hex A Hex B Type
DP6504-04 Steel 1/4" 4" 7/16-20 UNF 52mm/2.0" 17mm 17mm 1
DP6504-06 Steel 3/8" 6" 9/16-18 UNF 55.5mm/2.19" 19mm/0.75" 17mm/0.67" A
DP6504-08 Steel 1/2" 8" 3/4-16 UNF 56.5mm/2.22" 22mm/0.87" 19mm/0.75" A
DP6504-10 Steel 5/8" 10" 7/8-14 UNF 60mm/2.36" 27mm/1.06" 22mm/0.87" A
DP6504-12 Steel 3/4" 12" 1-1/16-12 UNF 70.5mm/2.78" 32mm/1.26" - B
DP6504-16 Steel 1" 16" 1-5/16-12 UNF 69mm/2.72" 38mm/1.50" - B
DP6504-20 Steel 1-1/4" 20" 1-5/8-12 UNF 73.5mm/2.89" 50mm/1.97" - B
DP6504-24 Steel 1-1/2" 24" 1-7/8-12 UNF 76mm/2.99" 60mm/2.36" - B
Brennan

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
