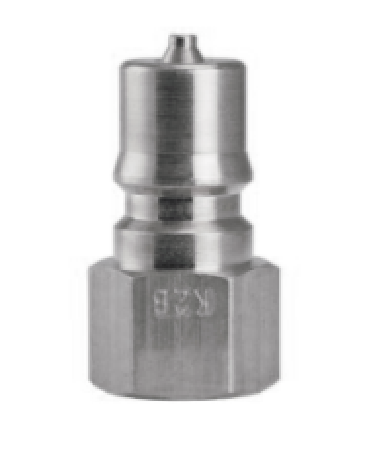

DS6F6-SS Breco by Foster | DS Series | Two Way Shut-Off | Quick Disconnect | 3/4" Plug x 3/4" Female NPTF Thread | 303 Stainless Steel

DS6F6-SS Breco by Foster | DS Series | Two Way Shut-Off | Quick Disconnect | 3/4" Plug x 3/4" Female NPTF Thread | 303 Stainless Steel

Save $33.33 Save $33.33
$83.33
$83.33 - $83.33
$83.33
$50.00
$50.00 - $50.00
$50.00

Foster Quick Disconnects - FHK & DS Series 3/4" Two Way Shut-Off, Plugs and Sockets - Breco
Specifications for Variant SKU: DS6F6-SS ZSi-Foster
Brand: Breco
Series: DS Series
Shape (Orientation): Straight
Material(s): 303 Stainless Steel
Interchange:
  • Compatible with ISO 7241-1, Series B.
Applications:
  • FHK Series sockets incorporate valves in both socket and plug halves to prevent fluid loss when the socket is disconnected. These sockets are normally referred to as "hydraulic couplings", but they are used extensively with other media where objectionable. The FHK Series sockets are available in ROHS compliant steel and brass.
Features:
  • Type: FHK, Two-Way Shutoff , Both socket and plug are sealed at disconnect.
  • Operation: Manual - Socket sleeve must be manually retracted to connect and disconnect.
  • Seal Compound: Standard seals are Buna-N.
  • Interchangeability: Standard, most widely used, industrial interchange design. Within each series, only sockets and plugs of the same size will couple to gether. Compatible with ISO 7241-1, Series B.
  • Ordering information: FHK Series couplings are available in ROHS compliant plated steel, brass, and 303 Stainless as standard. Brass couplings have double O-Ring seals (excluding 1/8") and stainless locking balls. Standard seals are Buna-N (Nitrile). Consult factory for optional seals.
  • Vacuum Service: 27" Hg. maximum Rated pressures as defined by ANSI/B93.2-1986 based on 4:1 Safety Factor and non-shock service.
  • NOTE: Only Sockets & Plugs with same prefix digits connect together. Example: 25FS & 25MPB
    • 1 ISO B, Hardened plugs and sleeves constructed from solid bar stock ensures long service life and maximum resistance to damage from hydraulic and mechanical shock.
    • 2 High flow capacity
    • 3 Foster's conical valve with its 360 deg. metal to metal valve stop maintains valve alignment and ensures that poppets open fully every time.
    • 4 Captive valve seal ensures "bubble tight" poppet sealing since seal is positively captured by the metal poppet to minimize seal washout or damage from high fluid velocity.
    • 5 Ball locking mechanism ensures reliable connections every time. Many ball bearings distribute the load while providing alignment and excellent swiveling action to reduce hose torque and prolong hose life.
    • 6 Broad range of metals and seal materials allow the use of most fluids.
Male PlugPart Number Brand Female CouplerPart Number Plug Dust Cap Thread Description
K6S Foster H6S H6B H6S/S B6DC-DP 3/4" Steel
DS6F6-S Breco 6DSF6-S - 3/4" Steel
K6S-101 Foster - - 3/4" Steel w/Viton Seal
K6S-102 Foster - - 3/4" Steel w/Neoprene Seal
K6S-103 Foster - - 3/4" Steel w/EPDM Seal
K6SLV Foster - - 3/4" Steel Less Valve
K6B Foster H6S H6B H6S/S B6DC-DP 3/4" Brass
DS6F6-B Breco 6DSF6-B BH6-66M 3/4" Brass
K6B-101 Foster - - 3/4" Brass, w/Viton Seal
K6B-103 Foster - - 3/4" Brass, w/Ethylene Propylene Seal
K6S/S Foster H6S H6B H6S/S B6DC-DP 3/4" 303 Stainless Steel
DS6F6-SS Breco 6DSF6-SS 6DSF6-SS-SLw/ Sleeve Lock 6DSF6-SS-Yw/ Viton Seal - 3/4" 303 Stainless Steel
K6S/S-101 Foster - - 3/4" 303 Stainless, w/Viton Seal
K6S/S-103 Foster - - 3/4" 303 Stainless, w/EPDM Seal
K6S/SLV Foster - - 3/4" 303 Stainless Less Valve
K6S12 Foster H6S12 - 1-1/16-12* Steel
DS6F6-SS316 Breco - - 3/4" 316 Stainless Steel
* SAE straight thread O-ring seal boss
