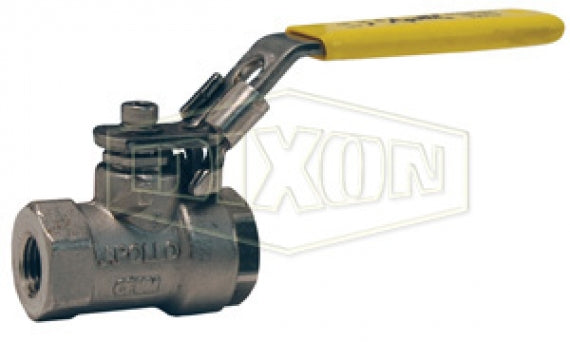

DSBV150 by Dixon Valve | 2-Piece Domestic Ball Valve | Full Port | 1-1/2" Female NPT x 1-1/2" Female NPT | 316 Stainless Steel

DSBV150 by Dixon Valve | 2-Piece Domestic Ball Valve | Full Port | 1-1/2" Female NPT x 1-1/2" Female NPT | 316 Stainless Steel

Save $218.63 Save $218.63
$546.58
$546.58 - $546.58
$546.58
$327.95
$327.95 - $327.95
$327.95

Dixon Valve & Coupling
2-Piece Domestic Ball Valve | 316 Stainless Steel
Specifications for Variant SKU: DSBV150 Dixon
Shape (Orientation): Straight
Ends Configuration: 1-1/2in Female NPT, 1-1/2in Female NPT, Some Ends Match
Material(s): 316 Stainless Steel
Seal Material(s): PTFE
Features:
  • Blow-out proof stem.
Materials:
  • Body: 316 Stainless Steel.
  • 316 stainless ball and stem.
  • RPTFE seal.
  • Vinyl handle cover.
Specifications:
  • Temperature range: -40°F to 400°F (-40°C to 204°C).
  • Pressure rating: 1,000 PSI CWP.
  • Pressure rating: 150 PSI saturated steam.
  • Vacuum service to 29 inches Hg.
Part Number Female NPT x Female NPT Port
DSBV25 1/4" Full
DSBV38 3/8" Full
DSBV50 1/2" Full
DSBV75 3/4" Full
DSBV100 1" Full
DSBV125 1-1/4" Full
DSBV150 1-1/2" Full
DSBV200 2" Full
