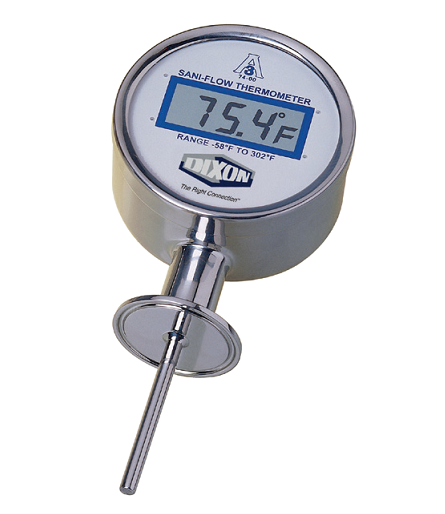

DT-15U-BT-DF Dixon Valve Sani-Flow Sanitary Digital Thermometer - 1-1/2" Clamp - Bottom Mount - Fahrenheit (°F) Display

DT-15U-BT-DF Dixon Valve Sani-Flow Sanitary Digital Thermometer - 1-1/2" Clamp - Bottom Mount - Fahrenheit (°F) Display

Save $58.00 Save $58.00
$1,026.09
$1,026.09 - $1,026.09
$1,026.09
$968.09
$968.09 - $968.09
$968.09

Dixon Sanitary Valves
Sani-Flow Sanitary Digital Thermometer

Dial Size: 3-1/2" diameter

LCD display: 0.6"
Specifications for Variant SKU: DT-15U-BT-DF Dixon
Materials:
  • Product contact: 316L stainless steel
  • Case: 304 stainless steel
  • Lens: 1/4" polycarbonate
Features:
  • Accuracy: ±1°
  • Surface finish: Ra max.is 8 microinches
  • Battery size / life: standard AAA/3 years
Specifications:
  • Temperature limits: -58°F to 302°F (-50°C to 150°C)
  • Ambient operating limits: -4°F to 140°F (-20°C to 60°C)
  • Resolution: 0.1° (-58° thru 199.9°)
Part Number Size Connection
Type		 Mount
Type		 Display Update
Interval		 Probe
Length
DT-050NPT-BK-DF 1/2" Male NPT Back Mount Fahrenheit (°F) - -
DT-075U-BK-DC-1 3/4" Clamp Back Mount Celsius (°C) 1 Second 2-3/8"
DT-075U-BK-DF-1 3/4" Clamp Back Mount Fahrenheit (°F) 1 Second 2-3/8"
DT-075U-BKDC125 3/4" Clamp Back Mount Celsius (°C) Display 1 Second 1-1/4"
DT-15-BT-DC 1-1/2" Clamp Bottom Mount Celsius (°C) - 2-3/4"
DT-15T-BT-DF-1 1-1/2" #13H Captive Nut and #14 Bevel Seat Bottom Mount Fahrenheit (°F) 1 Second 2-3/4"
DT-15U-BK-DC-1 1-1/2" Clamp Back Mount Celsius (°C) 1 Second 2-3/4"
DT-15U-BK-DF-1 1-1/2" Clamp Back Mount Fahrenheit (°F) 1 Second 2-3/4"
DT-15U-BT-DC-1 1-1/2" Clamp Bottom Mount Celsius (°C) 1 Second 2-3/4"
DT-15U-BT-DCSP2 1-1/2" Clamp Bottom Mount Celsius (°C) - 2"
DT-15U-BT-DF 1-1/2" Clamp Bottom Mount Fahrenheit (°F) - 2-3/4"
DT-15U-BT-DF-1 1-1/2" Clamp Bottom Mount Fahrenheit (°F) 1 Second 2-3/4"
DT-15U-BT-DF-10 1-1/2" Clamp Bottom Mount Fahrenheit (°F) 10 Seconds 2-3/4"
DT-15U-LF-DC-1 1-1/2" Clamp Left Side Mount Celsius (°C) 1 Second 2-3/4"
DT-15U-RT-DC-1 1-1/2" Clamp Right Side Mount Celsius (°C) 1 Second 2-3/4"
DT-15U-RT-DF-1 1-1/2" Clamp Right Side Mount Fahrenheit (°F) 1 Second 2-3/4"
DT-15U-RT-DF-10 1-1/2" Clamp Right Side Mount Fahrenheit (°F) 10 Seconds 2-3/4"
DT-1U-BK-DF-1 1" Clamp Back Mount Fahrenheit (°F) 1 Second 2-5/8"
DT-1U-BT-DC-1 1" Clamp Bottom Mount Celsius (°C) 1 Second 2-5/8"
DT-1U-LF-DC-1 1" Clamp Left Side Mount Celsius (°C) 1 Second 2-5/8"
DT-1U-RT-DC-1 1" Clamp Right Side Mount Celsius (°C) 1 Second 2-5/8"
DT-25-BT-DF 2-1/2" Clamp Bottom Mount Fahrenheit (°F) - 3-1/2"
DT-25U-BT-DF-1 2-1/2" Clamp Bottom Mount Fahrenheit (°F) 1 Second 3-1/2"
DT-2U-BK-DC-1 2" Clamp Back Mount Celsius (°C) 1 Second 3-1/2"
DT-2U-BK-DF-1 2" Clamp Back Mount Fahrenheit (°F) 1 Second 3-1/2"
DT-2U-BK-DF1-45 2" Clamp Back Mount Fahrenheit (°F) 1 Second 4-1/2"
DT-2U-BK-DF38S2 2" Clamp Back Mount Fahrenheit (°F) 1 Second 2"
DT-2U-BT-DF-01 2" Clamp Bottom Mount Fahrenheit (°F) 1 Second 3-1/2"
DT-2U-BT-DF-1 2" Clamp Bottom Mount Fahrenheit (°F) 1 Second 3-1/2"
DT-2U-BT-DF1-45 2" Clamp Bottom Mount Fahrenheit (°F) 1 Second 4-1/2"
DT-2U-RT-DF-1 2" Clamp Right Side Mount Fahrenheit (°F) 1 Second 3-1/2"
DT-3U-BT-DF-10 3" Clamp Bottom Mount Fahrenheit (°F) 10 Seconds 3-3/4"
DT-3U-LF-DF-1 3" Clamp Left Side Mount Fahrenheit (°F) 1 Second 3-3/4"
DT-50NPT-BK-DF1 1/2" Male NPT Back Mount Fahrenheit (°F) 1 Second -
DT-75U-BK-DF-1 3/4" Clamp Back Mount Fahrenheit (°F) 1 Second 2-3/8"
DT-75U-BT-DC 3/4" Clamp Bottom Mount Celsius (°C) - 2-3/8"
DT-75U-BT-DC-CD
with Detailed Calb. Cert.		 3/4" Clamp Bottom Mount Celsius (°C) - 2-3/8"
DT-75U-BT-DF-1 3/4" Clamp Bottom Mount Fahrenheit (°F) 1 Second 2-3/8"
DT-75U-LF-DF-1 3/4" Clamp Left Side Mount Fahrenheit (°F) 1 Second 2-3/8"
DT15UBTDC14SP14 1-1/2" Clamp Bottom Mount Celsius (°C) - .25" Probe Diameter
14" Length
DT15UBTDC38SP32 1-1/2" Clamp Bottom Mount Celsius (°C) - 3/8" Probe Diameter
32" Length
DT15UBTDC38SP38 1-1/2" Clamp Bottom Mount Celsius (°C) - 3/8" Probe Diameter
38" Length
DT15UBTF3/8SP48 1-1/2" Clamp Bottom Mount Fahrenheit (°F) - 3/8" Probe Diameter
48" Length
DT75UBKDCSP125 3/4" Clamp Back Mount Celsius (°C) - 3/8" Probe Diameter
1-1/4" Length
