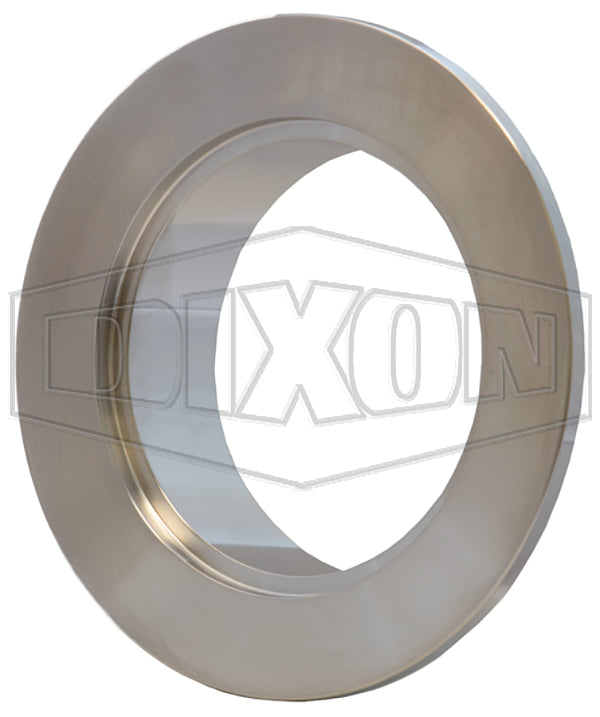

DVF-A16RC Dixon Valve KF Short Weld Flange for D-TORR Vacuum Fitting - Flange Size: KF16 - 316L Stainless Steel

Name: DVF-A16RC Dixon Valve KF Short Weld Flange for D-TORR Vacuum Fitting - Flange Size: KF16 - 316L Stainless Steel
Brand: Dixon
SKU: DVF-A16RC Dixon
Price: 21.24 USD
Availability: InStock

Save $14.16

$35.40

$35.40 - $35.40

$35.40

$21.24

$21.24 - $21.24

$21.24

Dixon Sanitary Fittings D-TORR Series Vacuum Fittings: KF Short Weld Flange - 316L Stainless Steel

Vacuum sealing for 1/2" - 2" OD tubing in the semiconductor industry

Specifications for Variant SKU: DVF-A16RC Dixon
Shape (Orientation):	Straight
Material(s):	316L Stainless Steel

Features:
KF assemblies contain two identical flanges and a centering ring assembly and are clamped together with a thumbscrew clamp. Coupling features prevent O-ring collapse and keep the assembly aligned. KF flanges are compatible with other ISO-KF-QF vacuum flange manufacturers' components All fittings are IPA cleaned and bagged in a controlled environment
Materials:
316L Stainless Steel
Specifications:
Maximum temperature: 302°F (150°C) Helium leakage testing to 1x10-8 Torr Standards followed: ISO2681

Part Number	Flange Size	Dimensions
Part Number	Flange Size	A	B	C	D	E
DVF-A10RC	KF10	1.18"	0.48"	0.37"	0.50"	0.50"
DVF-A16RC	KF16	1.18"	0.67"	0.62"	0.75"	0.50"
DVF-A25RC	KF25	1.58"	1.03"	0.87"	1.00"	0.50"
DVF-A40RC	KF40	2.17"	1.62"	1.37"	1.50"	0.75"
DVF-A50RC	KF50	2.95"	2.05"	1.87"	2.00"	0.75"
