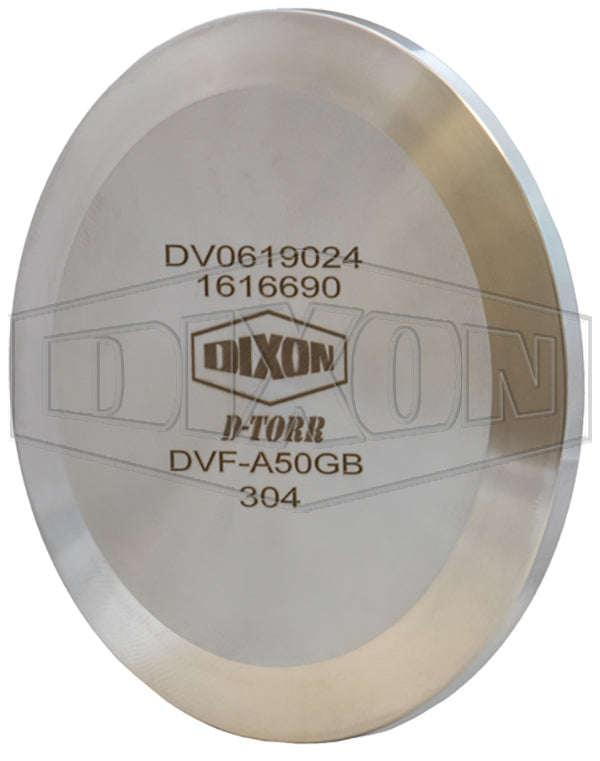

DVF-A50GB Dixon Valve KF Blank Flange for D-TORR Vacuum Fitting - Flange Size: KF50 - 304 Stainless Steel

DVF-A50GB Dixon Valve KF Blank Flange for D-TORR Vacuum Fitting - Flange Size: KF50 - 304 Stainless Steel

$23.23 - $23.23
$23.23
$23.48
$23.48 - $23.48
$23.48

Dixon Sanitary Fittings D-TORR Series Vacuum Fittings: KF Blank Flange - 304 Stainless Steel

Vacuum sealing for 1/2" - 2" OD tubing in the semiconductor industry
Specifications for Variant SKU: DVF-A50GB Dixon
Material(s): 304 Stainless Steel
Features:
  • KF assemblies contain two identical flanges and a centering ring assembly and are clamped together with a thumbscrew clamp. Coupling features prevent O-ring collapse and keep the assembly aligned.
  • KF flanges are compatible with other ISO-KF-QF vacuum flange manufacturers' components
  • All fittings are IPA cleaned and bagged in a controlled environment
Materials:
  • 304 Stainless Steel
Specifications:
  • Maximum temperature: 302°F (150°C)
  • Helium leakage testing to 1x10-8 Torr
  • Standards followed: ISO2681
Part Number Flange Size Dimensions
A B
DVF-A10GB KF10 1.18" 0.12"
DVF-A16GB KF16 1.18" 0.11"
DVF-A25GB KF25 1.58" 0.13"
DVF-A40GB KF40 2.17" 0.12"
DVF-A50GB KF50 2.95" 0.12"
