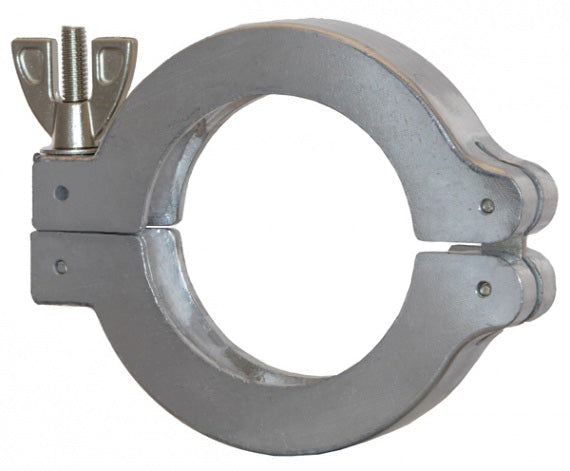

DVF-A50LH Dixon Valve KF Clamp for D-TORR Vacuum Fitting - Flange Size: KF50 - Aluminum

DVF-A50LH Dixon Valve KF Clamp for D-TORR Vacuum Fitting - Flange Size: KF50 - Aluminum

Save $9.18 Save $9.18
$22.95
$22.95 - $22.95
$22.95
$13.77
$13.77 - $13.77
$13.77

Dixon Sanitary Fittings D-TORR Series Vacuum Fittings: KF Clamp - Aluminum
Specifications for Variant SKU: DVF-A50LH Dixon
Material(s): Aluminum
Features:
  • KF assemblies contain two identical flanges and a centering ring assembly and are clamped together with a thumbscrew clamp. Coupling features prevent O-ring collapse and keep the assembly aligned.
  • KF flanges are compatible with other ISO-KF-QF vacuum flange manufacturers' components
  • All fittings are IPA cleaned and bagged in a controlled environment
Materials:
  • 304 Stainless Steel
Specifications:
  • Maximum temperature: 302°F (150°C)
  • Helium leakage testing to 1x10-8 Torr
  • Standards followed: ISO2681
Part Number Flange Size Dimensions
A B C
DVF-A1016LH KF10 & KF16 1.69" 2.39" 0.63"
DVF-A25LH KF25 2.14" 2.80" 0.63"
DVF-A40LH KF40 2.75" 3.44" 0.63"
DVF-A50LH KF50 3.50" 4.25" 0.71"
