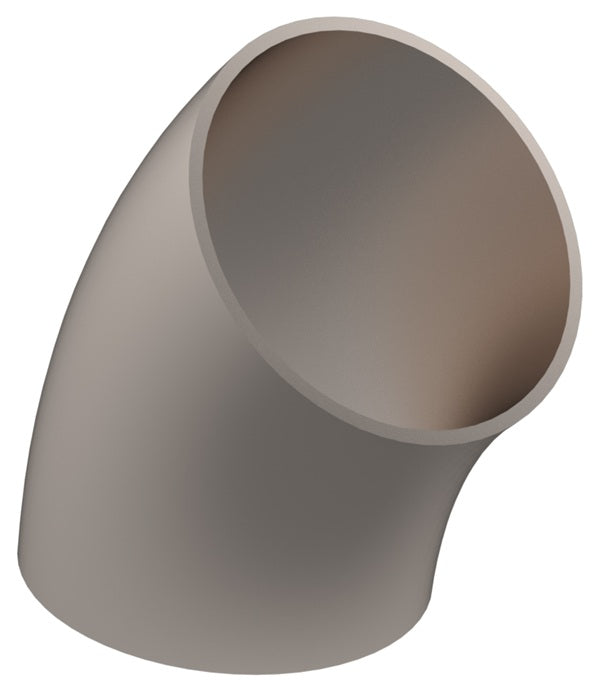

DVF-C050G2S Dixon Valve Vacuum Weld Fitting - Weld 45° Elbow for D-TORR Vacuum Fitting - 1/2" OD - 304 Stainless Steel (Bead Blast)

DVF-C050G2S Dixon Valve Vacuum Weld Fitting - Weld 45° Elbow for D-TORR Vacuum Fitting - 1/2" OD - 304 Stainless Steel (Bead Blast)

$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

Dixon Sanitary Fittings D-TORR Series Vacuum Fittings: Vacuum Weld Fitting - Weld 45° Elbow

Dixon® manufactures high-quality weld fittings for use in high-vacuum and high-temperature applications.

Each part is crafted with precision to ensure a leak-free fit. All fittings are IPA cleaned and bagged in a controlled environment.
Specifications for Variant SKU: DVF-C050G2S Dixon
Shape (Orientation): 45 Degree
Material(s): 304 Stainless Steel
Application:
  • Use in high-vacuum and high-temperature applications.
Materials:
  • Bead Blast 304 Stainless Steel
Specifications:
  • Helium leakage testing to 1x10-8 Torr
  • Standards followed: ASTM A270, ASTM A269, and ASME SA270
Part Number OD Dimensions
A R B C
DVF-C050G2S 1/2" 0.311" 0.750" 0.065" 0.500"
DVF-C075G2S 3/4" 0.41" 1.00" 0.065" 0.75"
DVF-C100G2S 1" 0.62" 1.50" 0.065" 1.00"
DVF-C150G2S 1-1/2" 0.93" 2.25" 0.065" 1.50"
DVF-C200G2S 2" 1.24" 3.00" 0.065" 2.00"
DVF-C250G2S 2-1/2" 1.55" 3.75" 0.065" 2.50"
DVF-C300G2S 3" 1.86" 4.50" 0.065" 3.00"
DVF-C400G2S 4" 2.49" 6.00" 0.083" 4.00"
DVF-C600G2S 6" 3.73" 9.00" 0.109" 6.00"

Dimensions are approximate and subject to change at any time without notice.
