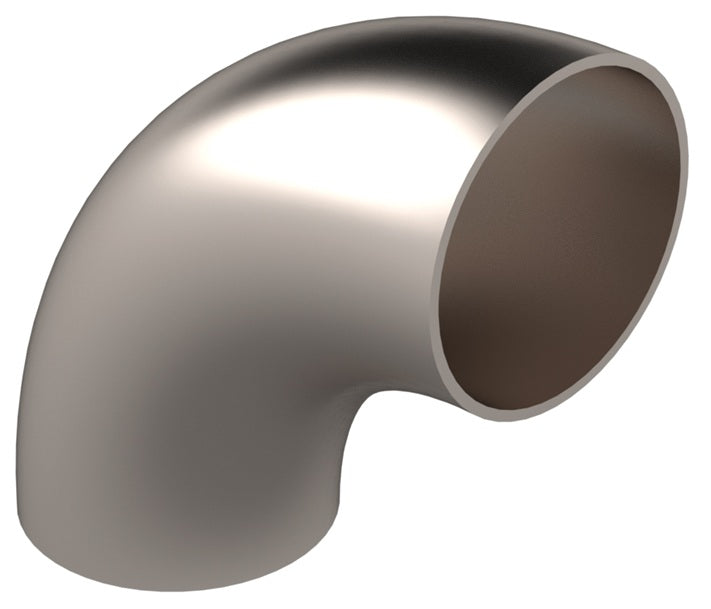

DVF-C075G1Q Dixon Valve Vacuum Weld Fitting - Weld 90° Elbow for D-TORR Vacuum Fitting - 3/4" OD - 304 Stainless Steel

Name: DVF-C075G1Q Dixon Valve Vacuum Weld Fitting - Weld 90° Elbow for D-TORR Vacuum Fitting - 3/4" OD - 304 Stainless Steel
Brand: Dixon
SKU: DVF-C075G1Q Dixon
Price: 11.37 USD
Availability: InStock

$11.25 - $11.25

$11.25

$11.37

$11.37 - $11.37

$11.37

Dixon Sanitary Fittings D-TORR Series Vacuum Fittings: Vacuum Weld Fitting - Weld 90° Elbow

Dixon® manufactures high-quality weld fittings for use in high-vacuum and high-temperature applications.

Each part is crafted with precision to ensure a leak-free fit. All fittings are IPA cleaned and bagged in a controlled environment.

Quantity

Specifications for Variant SKU: DVF-C075G1Q Dixon
Shape (Orientation):	90 Degree
Material(s):	304 Stainless Steel

Application:
Use in high-vacuum and high-temperature applications.
Materials:
Polished 304 Stainless Steel
Specifications:
Helium leakage testing to 1x10^-8 Torr Standards followed: ASTM A270, ASTM A269, and ASME SA270

Part Number	OD	Dimensions
Part Number	OD	A	R	B	C
DVF-C050G1Q	1/2"	0.75"	0.75"	0.065"	0.50"
DVF-C075G1Q	3/4"	1.00"	1.00"	0.065"	0.75"
DVF-C100G1Q	1"	1.50"	1.50"	0.065"	1.00"
DVF-C150G1Q	1-1/2"	2.25"	2.25"	0.065"	1.50"
DVF-C200G1Q	2"	3.00"	3.00"	0.065"	2.00"
DVF-C250G1Q	2-1/2"	3.75"	3.75"	0.065"	2.50"
DVF-C300G1Q	3"	4.50"	4.50"	0.065"	3.00"
DVF-C400G1Q	4"	6.00"	6.00"	0.083"	4.00"
DVF-C600G1Q	6"	9.00"	9.00"	0.109"	6.00"

Dimensions are approximate and subject to change at any time without notice.
