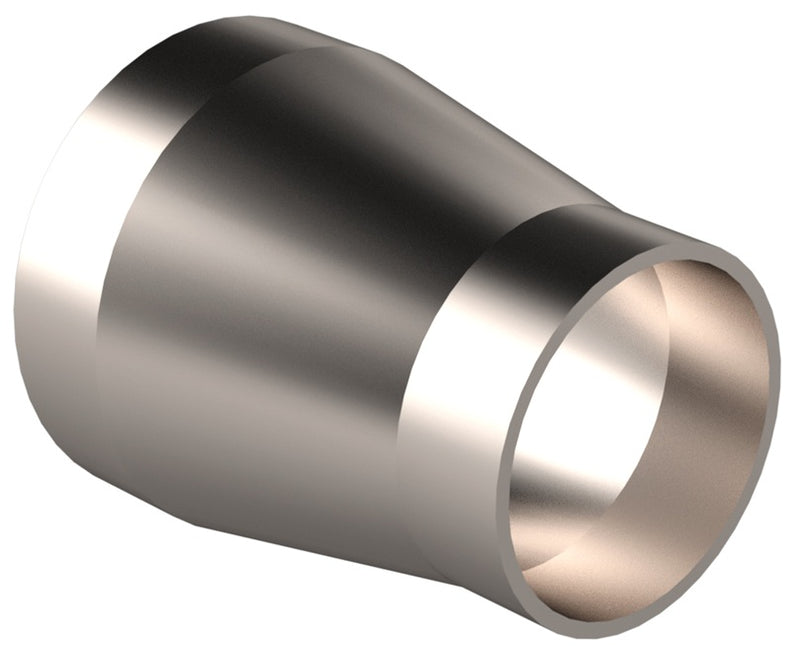

DVF-C100075G1U Dixon Valve Vacuum Weld Fitting - Concentric Reducer with Tangent for D-TORR Vacuum Fitting - 1" x 3/4" OD - 304 Stainless Steel

DVF-C100075G1U Dixon Valve Vacuum Weld Fitting - Concentric Reducer with Tangent for D-TORR Vacuum Fitting - 1" x 3/4" OD - 304 Stainless Steel

$19.38 - $19.38
$19.38
$19.59
$19.59 - $19.59
$19.59

Dixon Sanitary Fittings D-TORR Series Vacuum Fittings: Vacuum Weld Fitting - Concentric Reducer with Tangent

Dixon® manufactures high-quality weld fittings for use in high-vacuum and high-temperature applications.

Each part is crafted with precision to ensure a leak-free fit. All fittings are IPA cleaned and bagged in a controlled environment.
Specifications for Variant SKU: DVF-C100075G1U Dixon
Shape (Orientation): Straight
Material(s): 304 Stainless Steel
Application:
  • Use in high-vacuum and high-temperature applications.
Materials:
  • Polished 304 Stainless Steel
Specifications:
  • Helium leakage testing to 1x10-8 Torr
  • Standards followed: ASTM A270, ASTM A269, and ASME SA270
Part Number OD Dimensions
A B C D E
DVF-C100075G1U 1" x 3/4" 1.38" 0.50" 1.00" 0.75" 0.065"
DVF-C150075G1U 1-1/2" x 3/4" 2.38" 0.50" 1.50" 0.75" 0.065"
DVF-C150100G1U 1-1/2" x 1" 2.38" - - - -
DVF-C200100G1U 2" x 1" 2.38" 0.50" 2.00" 1.00" 0.065"
DVF-C200150G1U 2" x 1-1/2" 2.38" 0.50" 2.00" 1.50" 0.065"
DVF-C250150G1U 2-1/2" x 1-1/2" 2.38" 0.50" 2.50" 1.50" 0.065"
DVF-C250200G1U 2-1/2" x 2" 2.38" 0.50" 2.50" 2.00" 0.065"
DVF-C300150G1U 3" x 1-1/2" 3.63" 0.50" 3.00" 1.50" 0.065"
DVF-C300200G1U 3" x 2" 3.63" 0.50" 3.00" 2.00" 0.065"
DVF-C300250G1U 3" x 2-1/2" 3.63" 0.50" 3.00" 2.50" 0.065"
DVF-C400200G1U 4" x 2" 3.63" 0.50" 4.00" 2.00" 0.065"
DVF-C400250G1U 4" x 2-1/2" 3.63" 0.50" 4.00" 2.50" 0.065"
DVF-C400300G1U 4" x 3" 3.63" 0.50" 4.00" 3.00" 0.065"

Dimensions are approximate and subject to change at any time without notice.
