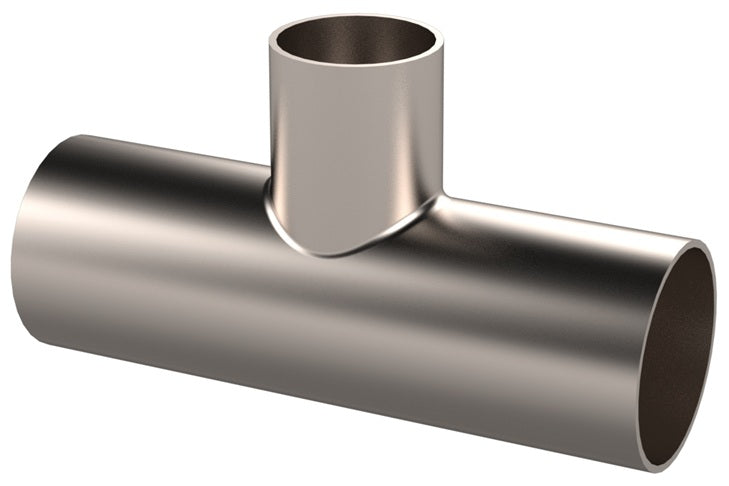

DVF-C250200R1W Dixon Valve Vacuum Weld Fitting - Weld Reducing Tee for D-TORR Vacuum Fitting - 2-1/2" x 2" OD - 316L Stainless Steel

DVF-C250200R1W Dixon Valve Vacuum Weld Fitting - Weld Reducing Tee for D-TORR Vacuum Fitting - 2-1/2" x 2" OD - 316L Stainless Steel

$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

Dixon Sanitary Fittings D-TORR Series Vacuum Fittings: Vacuum Weld Fitting - Weld Reducing Tee

Dixon® manufactures high-quality weld fittings for use in high-vacuum and high-temperature applications.

Each part is crafted with precision to ensure a leak-free fit. All fittings are IPA cleaned and bagged in a controlled environment.
Specifications for Variant SKU: DVF-C250200R1W Dixon
Shape (Orientation): Tee
Material(s): 316L Stainless Steel
Application:
  • Use in high-vacuum and high-temperature applications.
Materials:
  • Polished 316L Stainless Steel
Specifications:
  • Helium leakage testing to 1x10-8 Torr
  • Standards followed: ASTM A270, ASTM A269, and ASME SA270
Part Number OD Dimensions
A B
DVF-C100075R1W 1" x 3/4" 1.88" 2.13"
DVF-C150075R1W 1-1/2" x 3/4" 2.25" 2.25"
DVF-C150100R1W 1-1/2" x 1" 2.25" 2.38"
DVF-C200100R1W 2" x 1" 3.00" 2.38"
DVF-C200150R1W 2" x 1-1/2" 3.00" 2.38"
DVF-C250150R1W 2-1/2" x 1-1/2" 3.00" 2.50"
DVF-C250200R1W 2-1/2" x 2" 3.00" 2.75"
DVF-C300150R1W 3" x 1-1/2" 3.25" 3.25"
DVF-C300200R1W 3" x 2" 3.25" 3.00"
DVF-C300250R1W 3" x 2-1/2" 3.25" 3.25"
DVF-C400200R1W 4" x 2" 3.88" 4.00"
DVF-C400250R1W 4" x 2-1/2" 3.88" 3.75"
DVF-C400300R1W 4" x 3" 3.88" 3.75"
DVF-C600300R1W 6" x 3" 5.00" 4.75"
DVF-C600400R1W 6" x 4" 5.00" 4.88"

Dimensions are approximate and subject to change at any time without notice.
