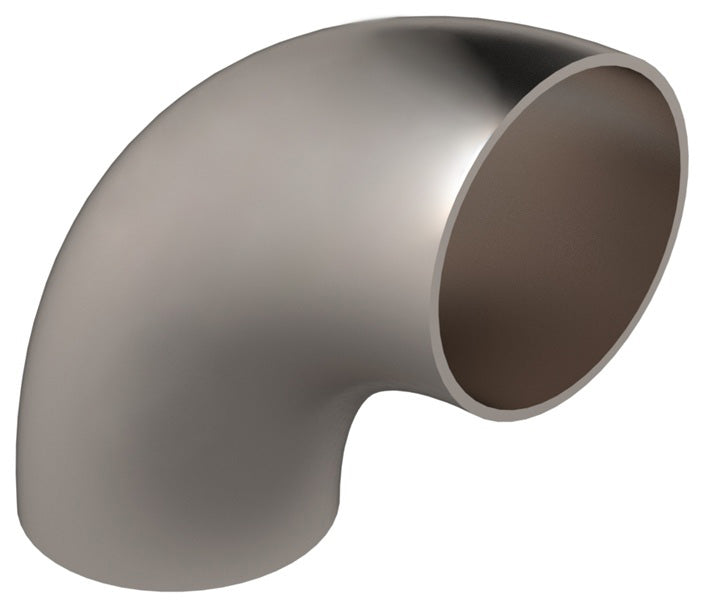

DVF-C300R2Q Dixon Valve Vacuum Weld Fitting - Weld 90° Elbow for D-TORR Vacuum Fitting - 3" OD - 316 Stainless Steel (Bead Blast)

DVF-C300R2Q Dixon Valve Vacuum Weld Fitting - Weld 90° Elbow for D-TORR Vacuum Fitting - 3" OD - 316 Stainless Steel (Bead Blast)

$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

Dixon Sanitary Fittings D-TORR Series Vacuum Fittings: Vacuum Weld Fitting - Weld 90° Elbow

Dixon® manufactures high-quality weld fittings for use in high-vacuum and high-temperature applications.

Each part is crafted with precision to ensure a leak-free fit. All fittings are IPA cleaned and bagged in a controlled environment.
Specifications for Variant SKU: DVF-C300R2Q Dixon
Shape (Orientation): 90 Degree
Material(s): 316 Stainless Steel
Application:
  • Use in high-vacuum and high-temperature applications.
Materials:
  • Bead Blast 316L Stainless Steel
Specifications:
  • Helium leakage testing to 1x10-8 Torr
  • Standards followed: ASTM A270, ASTM A269, and ASME SA270
Part Number OD Dimensions
A R B C
DVF-C050R2Q 1/2" 0.75" 0.75" 0.065" 0.50"
DVF-C075R2Q 3/4" 1.00" 1.00" 0.065" 0.75"
DVF-C100R2Q 1" 1.50" 1.50" 0.065" 1.00"
DVF-C150R2Q 1-1/2" 2.25" 2.25" 0.065" 1.50"
DVF-C200R2Q 2" 3.00" 3.00" 0.065" 2.00"
DVF-C250R2Q 2-1/2" 3.75" 3.75" 0.065" 2.50"
DVF-C300R2Q 3" 4.50" 4.50" 0.065" 3.00"
DVF-C400R2Q 4" 6.00" 6.00" 0.083" 4.00"
DVF-C600R2Q 6" 9.00" 9.00" 0.109" 6.00"

Dimensions are approximate and subject to change at any time without notice.
