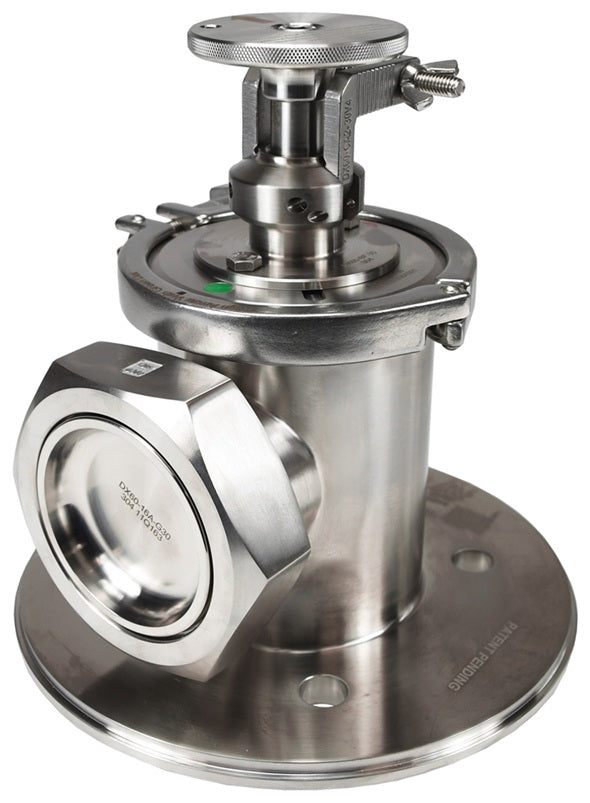

DX603010A1GV2 Dixon Valve DX60 Series Hygienic Tanker Valve - 3" Flange x Male Threaded Bevel - 304 Stainless Steel
DX603010A1GV2 Dixon Valve DX60 Series Hygienic Tanker Valve - 3" Flange x Male Threaded Bevel - 304 Stainless Steel

DX603010A1GV2 Dixon Valve DX60 Series Hygienic Tanker Valve - 3" Flange x Male Threaded Bevel - 304 Stainless Steel

Save $1,103.75 Save $1,103.75
$2,759.38
$2,759.38 - $2,759.38
$2,759.38
$1,655.63
$1,655.63 - $1,655.63
$1,655.63

Dixon Sanitary Fittings DX60 Series Hygienic Tanker Valve

Used on food-grade stainless steel bulk transport trailers to safely and hygienically load and unload various products including milk, juices, chocolate, glycerin, and many types of food-grade oils.

3A - authorization number 1655, 53-06 (compression-type valves) for CIP and COP
Specifications for Variant SKU: DX603010A1GV2 Dixon
Shape (Orientation): 90 Degree
Ends Configuration: 3in Threaded Bevel Seat, 3in 150# Flange
Material(s): 304 Stainless Steel
Materials:
  • All product contact steel components: 304 stainless steel
  • All non-product contact steel components: 304 stainless steel
  • Product contact seal elastomers: FKM or Buna
  • Stem bushings: PTFE
Specifications:
  • Holding pressure: 75 PSI
  • Temperature range: -20°F to 212°F (-28.9°C to 100°C)
  • Surface ID finish: <32Ra
  • Elastomers: FDA 21CFR 177.2600 & 3A 18-03 Class I

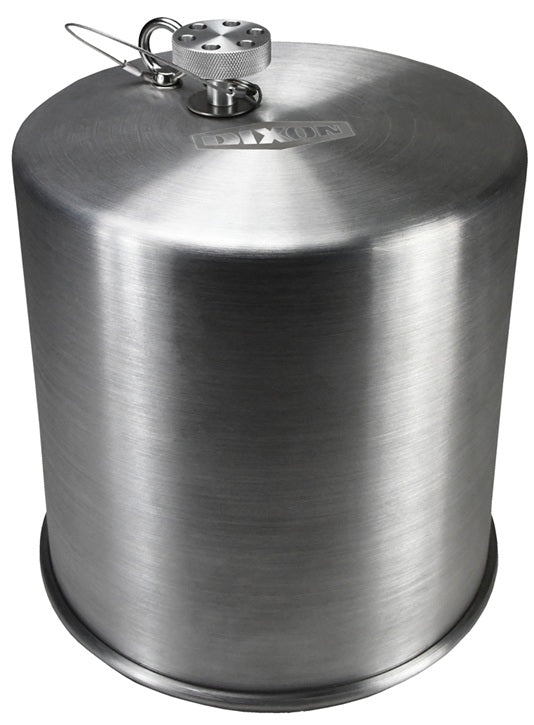

  • Weight: 27 lbs. with standard plunger and aluminum cover
Features:
  • Valve Housing: Machined from solid bar with 5mm thick wall to provide reliable performance even in the most demanding applications. Internal geometry designed for optimal cleanability and drainability.
  • Hygienic Single Acting: Wiper lip seal provides improved cleanability, durability, and performance over standard O-ring seals in dynamic applications.
  • Easy-Lock Plunger: Dixon's unique lock-arm design allows the plunger to be locked in the open position by pulling the plunger to the open position and rotating the handle. No need for any external locking devices
  • Bonnet Design: Uses standard sanitary clamp that allows the entire plunger and bonnet assembly to be removed quickly and easily with no tools required.
  • Conical Freeze Rod: Conical shaped rod allows flow around the rod as soon as the valve is slightly opened. Can be used for any product that does not flow easily.
  • Patent-Pending Closure System: Only valve on the market that has eliminated the pinch point between the handle and bonnet.
Literature:
Part Number Size Connection
DX603010A1GV1 3" Flange x Male Threaded Bevel
DX603010A1GV1R 3" Flange x Male Threaded Bevel with Conical Freeze Rod
DX603010A1GV2 3" Flange x Male Threaded Bevel
DX603010A1GV2R 3" Flange x Male Threaded Bevel with Conical Freeze Rod
