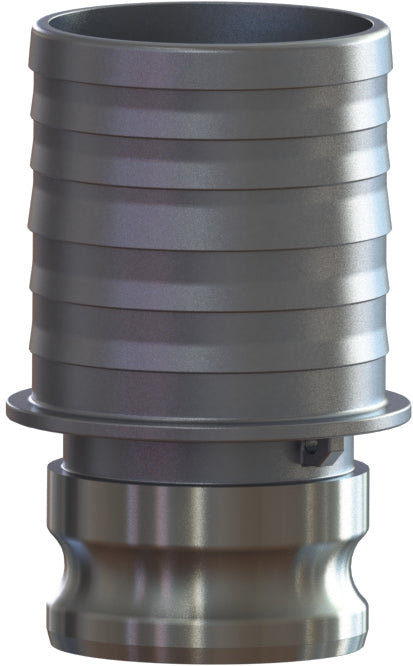

E-AL-3025 by Campbell Fittings | Standard Cam & Groove | Jump Size E | 3" Adapter x 2-1/2" Hose Shank | Straight | Aluminum

E-AL-3025 by Campbell Fittings | Standard Cam & Groove | Jump Size E | 3" Adapter x 2-1/2" Hose Shank | Straight | Aluminum

$24.32 - $24.32
$24.32
$28.95
$28.95 - $28.95
$28.95

by Campbell
Jump Size E (for use with sleeves or bands) Adapter x Hose Shank:Aluminum Adapter x Hose Shank
Specifications for Variant SKU: E-AL-3025 Campbell Fittings
Shape (Orientation): Straight
Cam Type: Other
Ends Configuration: 3in Male Adapter, 2-1/2in Hose Barb
Material(s): Aluminum
Recommended Use:
  • Multi-purpose liquid, chemical, bulk handling
Recommended Hose Attachments:
  • Sleeves
  • Preformed Bands
Features and Benefits:
  • Designed to couple and interchanging made to ASTM F1122, CID A-A-59326, MIL-C-27487
Part Number Adapter x Hose Barb
E-AL-2015 2" x 1-1/2"
E-AL-2025 2" x 2-1/2"
E-AL-2030 2" x 3"
E-AL-3020 3" x 2"
E-AL-3025 3" x 2-1/2"
E-AL-3040 3" x 4"
E-AL-4020 4" x 2"
E-AL-4030 4" x 3"
Campbell Fittings

Campbell Fittings

Campbell Fittings offers a range of hose fittings, couplings, ferrules, and sleeves, for applications across a variety of industries.
