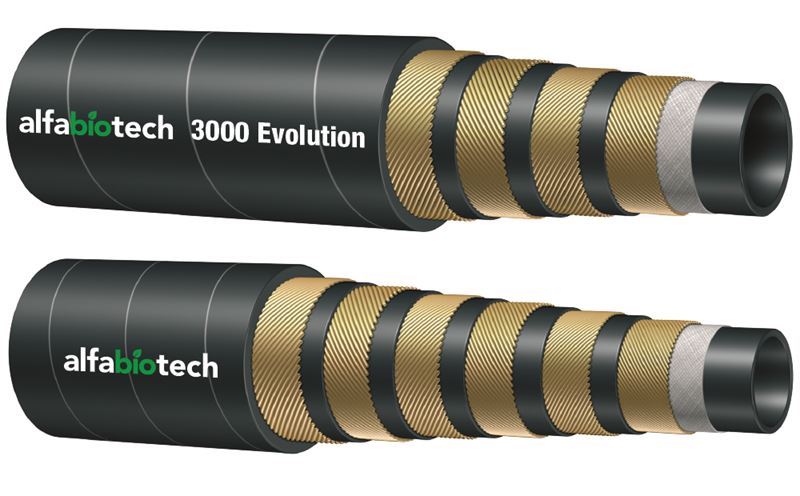

E3K-20 Alfagomma by Kuriyama | Alfabiotech Evolution Series | E3K Series | 4-Wire | Minetuff Hydraulic Hose | 1-1/4" ID | 1.77" OD | 3000 PSI

E3K-20 Alfagomma by Kuriyama | Alfabiotech Evolution Series | E3K Series | 4-Wire | Minetuff Hydraulic Hose | 1-1/4" ID | 1.77" OD | 3000 PSI | 200ft Length

Save $1,546.93 Save $1,546.93
$5,414.26
$5,414.26 - $5,414.26
$5,414.26
$3,867.33
$3,867.33 - $3,867.33
$3,867.33

Kuriyama of America Inc.
Alfagomma | Alfabiotech Evolution Series | E3K Series | 3000 PSI Minetuff Hydraulic Hose

Developed to withstand very demanding conditions; very high performance in pressure, pulsing and flexing.


Package Quantity: 200 Units

Specifications for Variant SKU: E3K-20 Kuriyama | 200 |
Brand: Alfabiotech Evolution
Series: E3K Series
Hose Color(s): Black
Dash Size: -20
Internal Diameter: 1.25in
Outer Diameter: 1.77in
Tubing Construction: Synthetic Rubber
Cover Construction: Synthetic Rubber
Applicable Specs & Approvals: SAE 100R12, ISO 18752, MSHA IC-152/16
Compatible with the following Series: S Series  |   B Series  |   AS4 Series

SPECIFICATIONS

Application: Developed to withstand very demanding conditions; very high performance in pressure, pulsing and flexing. SAE Rating: SAE 100R12
Other Ratings: ISO 18752/CC 1,000,000+ impulse cycles
MSHA IC-152/16 approved flame resistance		 Tube: Oil resistant synthetic rubber and biodegradable hydraulic fluids
Reinforcement: Four/six high tensile steel spirals Cover: Abrasion, ozone and hydrocarbon resistant synthetic rubber
Service Temperature Range: -40°F (-40°C) to +250°F (+121°C) Specifications -
Branding: ALFAGOMMA ALFABIOTECH EVOLUTION 3K MINETUFF ... WP 21 MPa (3000 PSI) - ISO 18752/CC - exceeds SAE 100 R12 - MSHA IC152/16 - MADE IN ITALY
Other Features:
  • MineTuff Cover
  • Extremely Flexible
Part Number ID OD Max. Working
Pressure
at 68°F		 Min Bend
Radius		 Standard
Length		 Weight
(in.) (mm) (in.) (mm) PSI (in.) (mm) (ft.) (lbs./ft.)
E3K-20 1-1/4" 31.8mm 1.77" 44.9mm 3000 PSI 8.27" 210mm 200ft 1.27 lbs
E3K-24 1-1/2" 38.1mm 1.99" 50.6mm 3000 PSI 9.84" 250mm 200ft 1.59 lbs
E3K-32 2" 50.8mm 2.55" 64.7mm 3000 PSI 12.52" 318mm 100ft 2.38 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
