E5.5K-12 Alfagomma by Kuriyama | Alfabiotech Evolution Series | E5.5K Series | 4-Wire | Minetuff Hydraulic Hose | 3/4" ID | 1.19" OD | 5500 PSI

E5.5K-12 Alfagomma by Kuriyama | Alfabiotech Evolution Series | E5.5K Series | 4-Wire | Minetuff Hydraulic Hose | 3/4" ID | 1.19" OD | 5500 PSI | Bulk/Multiple Piece Quantities

Save $4.05 Save $4.05
$14.17
$14.17 - $14.17
$14.17
$10.12
$10.12 - $10.12
$10.12

Kuriyama of America Inc.

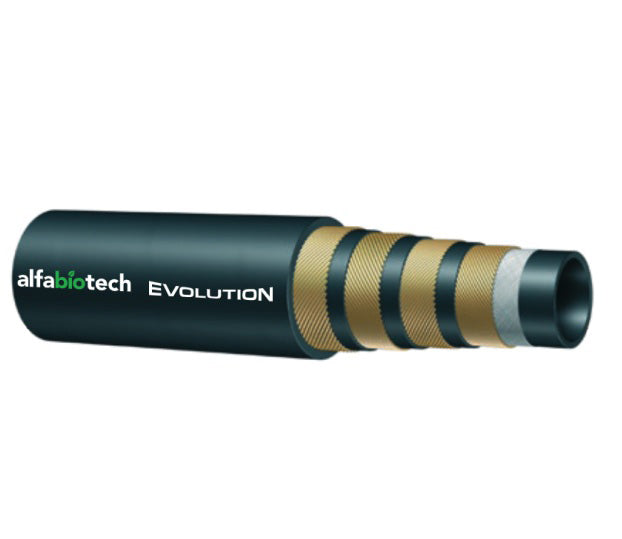

Alfagomma | Alfabiotech Evolution Series | E5.5K Series | 5500 PSI Minetuff Hydraulic Hose

Developed to withstand very demanding conditions; very high performance in pressure, pulsing and flexing.

This item is sold as Bulk Length and thus may come in multiple sections.
Specifications for Variant SKU: E5.5K-12 Kuriyama
Brand: Alfabiotech Evolution
Series: E5.5K Series
Hose Color(s): Black
Dash Size: -12
Internal Diameter: 0.75in
Outer Diameter: 1.19in
Tubing Construction: Synthetic Rubber
Cover Construction: Synthetic Rubber
Applicable Specs & Approvals: SAE 100R13, ISO 18752, MSHA IC-152/16
Compatible with the following Series: S Series  |   AS4 Series  |   XF2 Series  |   YS2 Series

SPECIFICATIONS

Application: Developed to withstand very demanding conditions; very high performance in pressure, pulsing and flexing. SAE Rating: SAE 100R13
Other Ratings: ISO 18752/CC 1,000,000+ impulse cycles
MSHA IC-152/16 approved flame resistance		 Tube: Oil resistant synthetic rubber and biodegradable hydraulic fluids
Reinforcement: Four high tensile steel spirals Cover: Abrasion, ozone and hydrocarbon resistant synthetic rubber
Service Temperature Range: -40°F (-40°C) to +250°F (+121°C) Specifications -
Branding: ALFAGOMMA ALFABIOTECH EVOLUTION 5K PLUS MINETUFF ... WP 38 MPa (5500 PSI) - exceeds ISO 18752/CC - SAE 100 R13 - MSHA IC-152/16 - MADE IN ITALY
Other Features:
  • MineTuff Cover
  • Extremely Flexible
Part Number ID OD Max. Working
Pressure
at 68°F		 Min Bend
Radius		 Standard
Length		 Weight
(in.) (mm) (in.) (mm) PSI (in.) (mm) (ft.) (lbs./ft.)
E5.5K-12 3/4" 19.1mm 1.19" 30.2mm 5500 PSI 4.72" 120.0mm By the Foot 0.86 lbs
E5.5K-16 1" 25.4mm 1.47" 37.4mm 5500 PSI 5.91" 150.0mm By the Foot 1.23 lbs
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
