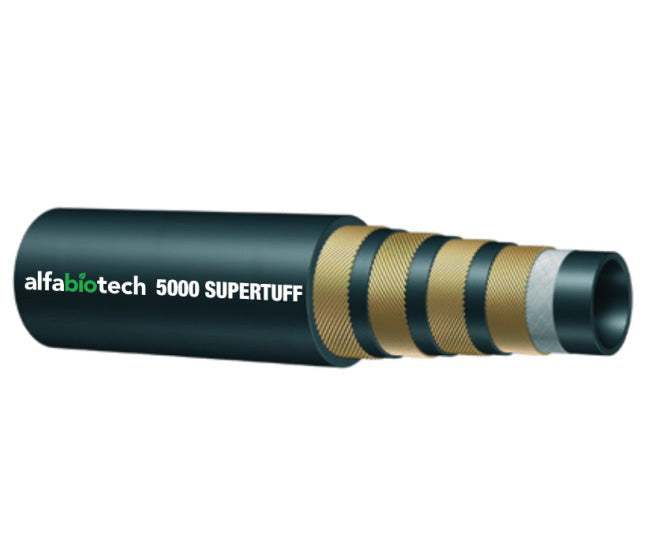

E5KST-10 Alfagomma by Kuriyama | Alfabiotech Evolution Series | E5KST Series | 4-Wire | Supertuff Hydraulic Hose | 5/8" ID | 1.00" OD | 5000 PSI

E5KST-10 Alfagomma by Kuriyama | Alfabiotech Evolution Series | E5KST Series | 4-Wire | Supertuff Hydraulic Hose | 5/8" ID | 1.00" OD | 5000 PSI | Bulk/Multiple Piece Quantities

Save $0.93 Save $0.93
$8.40
$8.40 - $8.40
$8.40
$7.47
$7.47 - $7.47
$7.47

Kuriyama of America Inc.
Alfagomma | Alfabiotech Evolution Series | E5KST Series | 5000 PSI Supertuff Hydraulic Hose

Developed to withstand very demanding conditions; very high performance in pressure, pulsing and flexing.

This item is sold as Bulk Length and thus may come in multiple sections.
Specifications for Variant SKU: E5KST-10 Kuriyama
Brand: Alfabiotech Evolution
Series: E5KST Series
Hose Color(s): Black
Dash Size: -10
Internal Diameter: 0.625in
Outer Diameter: 1in
Tubing Construction: Synthetic Rubber
Cover Construction: Synthetic Rubber
Applicable Specs & Approvals: EN856 4SP, ISO 18752, MSHA IC-152/16
Compatible with the following Series: S Series  |   AS4 Series

SPECIFICATIONS

Application: Developed to withstand very demanding conditions; very high performance in pressure, pulsing and flexing. SAE Rating: SAE 100R13 (1-1/2" and 2")
Other Ratings: EN856 4SP (5/8", 3/4" and 1")
EN856 4SH (1-1/4")
ISO 18752/CC 1,000,000+ impulse cycles
MSHA IC-152/16 approved flame resistance		 Tube: Oil resistant synthetic rubber and biodegradable hydraulic fluids
Reinforcement: Four/six high tensile steel spirals Cover: Abrasion, ozone and hydrocarbon resistant synthetic rubber: Special "supertuff" cover for excellent abrasion resistance and long service life in heavy duty applications
Service Temperature Range: -40°F (-40°C) to +250°F (+121°C) Specifications -
Branding: ALFAGOMMA ALFABIOTECH EVOLUTION 5K SUPERTUFF ... WP 35 MPa (5000 PSI) - ISO 18752/CC - MSHA IC-152/7 - MADE IN ITALY
Other Features:
  • SuperTuff Cover
  • Extremely Flexible
Part Number ID OD Max. Working
Pressure
at 68°F		 Min Bend
Radius		 Standard
Length		 Weight
(in.) (mm) (in.) (mm) PSI (in.) (mm) (ft.) (lbs./ft.)
E5KST-10 5/8" 15.9mm 1.00" 25.4mm 5000 PSI 3.94" 100.0mm By the Foot 0.57 lbs
E5KST-12 3/4" 19.1mm 1.16" 29.4mm 5000 PSI 4.72" 120.0mm By the Foot 0.79 lbs
E5KST-16 1" 25.4mm 1.47" 37.4mm 5000 PSI 5.91" 150.0mm By the Foot 1.10 lbs
E5KST-20 1-1/4" 31.8mm 1.73" 44.0mm 5000 PSI 8.27" 210.0mm 200ft 1.49 lbs
E5KST-24 1-1/2" 38.1mm 2.16" 54.8mm 5000 PSI 9.84" 250.0mm 200ft 2.64 lbs
E5KST-32 2" 50.8mm 2.70" 68.7mm 5000 PSI 12.52" 318.0mm 200ft 3.89 lbs
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
