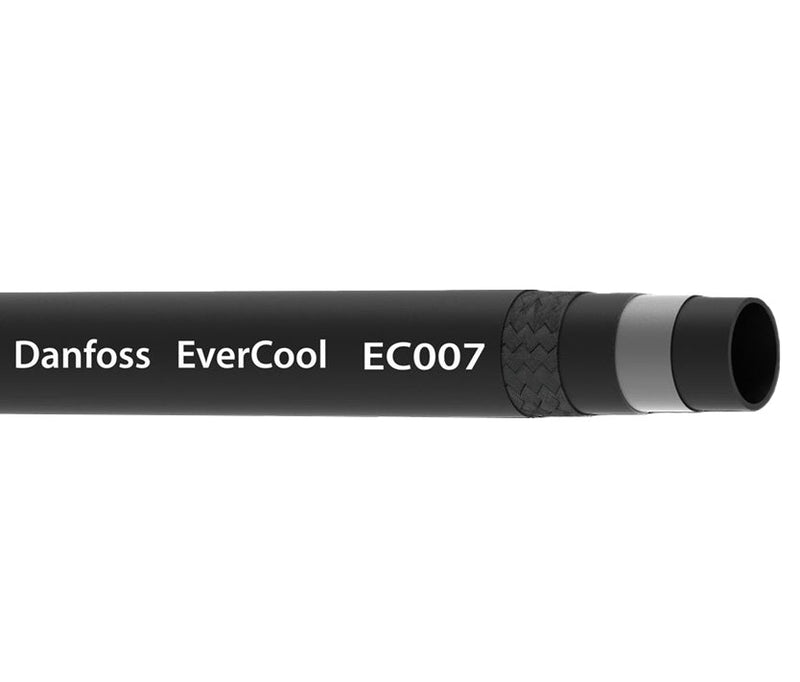

EC007-08 Aeroquip by Danfoss | E-Z Clip | EverCool Air Conditioning & Refrigeration Hose | SAE J3062 / J2064 Type C | 0.42" ID

EC007-08 Aeroquip by Danfoss | E-Z Clip | EverCool Air Conditioning & Refrigeration Hose | SAE J3062 / J2064 Type C | 0.42" ID

$4.70 - $4.70
$4.70
$4.70 - $4.70
$4.70

Aeroquip® by Danfoss
EC007 Series | EverCool | Air Conditioning & Refrigeration Hose

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
Specifications for Variant SKU: EC007-08RL Danfoss
Brand: Aeroquip
Series: EC007 Series
Hose Color(s): Black
Internal Diameter: 0.42in
Outer Diameter: 0.70in
Tubing Construction: Synthetic Rubber
Cover Construction: Bromobutyl
Applicable Specs & Approvals: SAE J3062, SAE J2064 Type C
Hose Properties:
Application: Truck, bus, agricultural, and construction vehicles SAE Rating: Exceeds: SAE J3062 / J2064 Type C, Class 1
Other Ratings: Qualified with R134a, R1234yf, R407C, R513a, R404a and R452a
Class 1 moisture ingression rating
Oils: POE, PAG
Moisture ingression <0.039 g/cm2/year according to SAE J3062, Class 1
Cover: Bromobutyl (BIIR) Tube: Chloroprene (CR)
Reinforcement: 1 Textile Braid Benefits: Ozone and UV resistant.
Operating Parameters: -4°F to +275°F (-40°C to +135°C)
R1234yf effusion .65 kg/m2/yr at 80°C
R134a effusion .8 kg/m2/yr at 80°C
Part Number Hose ID Hose OD Max. Operating Pressure Min. Burst Pressure Min. Bend Radius Weight Vacuum service
DN mm in mm in bar psi bar psi mm in kg/m lbs/ft kPa in/Hg
EC007-06 8 8.10 mm 0.32" 15.20mm 0.60" 35 bar 500 psi 140 bar 2000 psi 50mm 50" 2.0 kg/m 0.14 lbs/ft 94,8 kPa 28 in/Hg
EC007-08 10 10.70 mm 0.42" 17.80mm 0.70" 35 bar 500 psi 140 bar 2000 psi 64mm 64" 2.5 kg/m 0.17 lbs/ft 94,8 kPa 28 in/Hg
EC007-10 12 12.90 mm 0.51" 19.90mm 0.70" 35 bar 500 psi 140 bar 2000 psi 76mm 76" 3.0 kg/m 0.19 lbs/ft 94,8 kPa 28 in/Hg
EC007-12 16 16.30 mm 0.64" 24.10mm 0.95" 35 bar 500 psi 140 bar 2000 psi 102mm 102" 4.0 kg/m 0.34 lbs/ft 94,8 kPa 28 in/Hg
EC007-14 18 18.80 mm 0.74" 28.40mm 1.12" 35 bar 500 psi 140 bar 2000 psi 127mm 127" 5.0 kg/m 0.43 lbs/ft 94,8 kPa 28 in/Hg

Bulk / By the Foot: We sell Danfoss hose in "Bulk Length" unless otherwise specified in the title or option selector as "Exact Length". When you buy "Bulk Length" hose you are agreeing to buy multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you need a single piece then you can select an "Exact Length" option or Contact Us for a quote.

Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc., or any other entity. Consult current master catalog for additional warnings and cautions.
