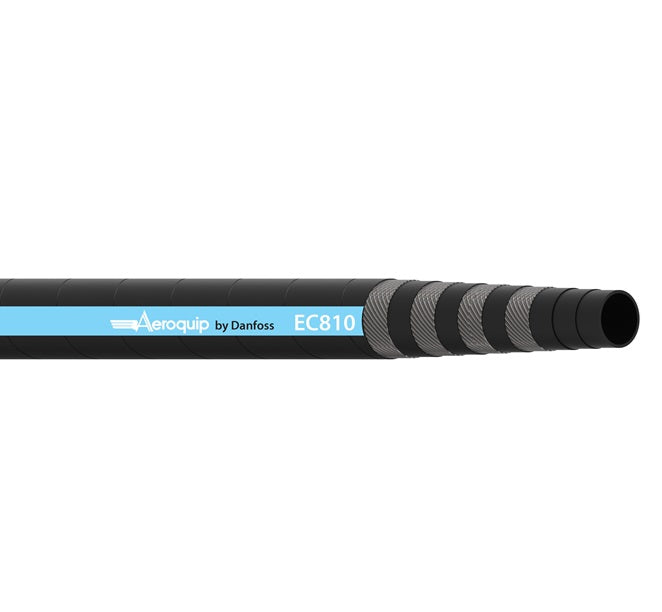

EC810-16 Aeroquip by Danfoss | ICE CHAMPION Premium Low Temperature 4-Spiral Wire Hydraulic Hose | SAE 100R15 | 1.00" ID

EC810-16 Aeroquip by Danfoss | ICE CHAMPION Premium Low Temperature 4-Spiral Wire Hydraulic Hose | SAE 100R15 | 1.00" ID

$47.09 - $47.09
$47.09
$47.09 - $47.09
$47.09

Aeroquip® by Danfoss
EC810 Series | ICE CHAMPION Premium Low Temperature Spiral Wire Hydraulic Hose

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.


Sold as Bulk Footage at no Exact Length. Purchased Quantity may come in multiple lengths.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: EC810-16 Danfoss
Brand: Aeroquip, ICE CHAMPION
Series: EC810 Series
Hose Color(s): Black
Dash Size: -16
Internal Diameter: 1.00in
Outer Diameter: 1.54in
Tubing Construction: Synthetic Rubber
Cover Construction: Synthetic Rubber
Applicable Specs & Approvals: EN856 Type R15, SAE 100R15
Hose Properties:
Application: Fluids for low temperature applications.
Hydraulic systems with petroleum-based fluids.		 SAE Rating: Exceeds: SAE 100R15, EN 856 Type R15 performance
Other Ratings: MSHA Accepted Tube: Synthetic Rubber
Reinforcement: Heavy 4-Spiral Wire in -12 to -16
6-Spiral Wire in -20 to -32		 Cover: Synthetic Rubber
Temperature Range: (-70°F to +212°F)
(-57°C to +100°C)
Part Number Hose ID Nominal Hose OD Max. Operating Pressure Min. Burst Pressure Min. Bend Radius Weight
DN mm in mm in bar psi bar psi mm in kg/m lbs/ft
EC810-12 19 19,0mm 0.75" 32,2mm 1.27" 420 bar 6100 psi 1,680 bar 24,360 psi 280,0mm 11.02" 1,61 kg/m 1.08 lbs/ft
EC810-16 25 25,4mm 1.00" 39,0mm 1.54" 420 bar 6100 psi 1680,0 bar 24,360 psi 340,0mm 13.39" 2,02 kg/m 1.36 lbs/ft
EC810-20 31 31,8mm 1.25" 49,4mm 1.95" 420 bar 6100 psi 1,680 bar 24,360 psi 420,0mm 16.54" 3,55 kg/m 2.39 lbs/ft
EC810-24 38 38,1mm 1.50" 57,3mm 2.26" 420 bar 6100 psi 1,680 bar 24,360 psi 510,0mm 20.08" 4,74 kg/m 3.19 lbs/ft
EC810-32 51 50,8mm 2.00" 71,1mm 2.80" 350 bar 5100 psi 1400 bar 20,305 psi 630,0mm 24.80" 6,70 kg/m 4.50 lbs/ft

Bulk / By the Foot: We sell Danfoss hose in "Bulk Length" unless otherwise specified in the title or option selector as "Exact Length". When you buy "Bulk Length" hose you are agreeing to buy multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you need a single piece then you can select an "Exact Length" option or Contact Us for a quote.

Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc., or any other entity. Consult current master catalog for additional warnings and cautions.
