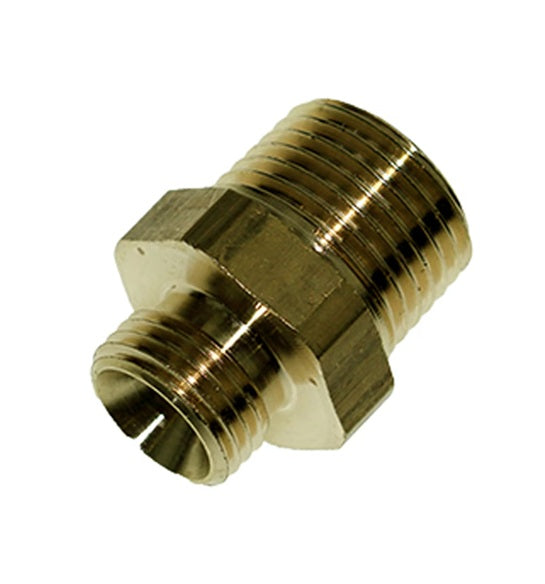

EG10-1/4B by Parker | Compression Fittings | 1/4" Male BSPT Thread x 10mm Connection Tube OD | Straight | Brass | Pack of 40

Save $19.88

$241.75

$241.75 - $241.75

$241.75

$221.87

$221.87 - $221.87

$221.87

by Parker Hannifin
Brass Compression Fittings:Brass Adaptor Cone 60° compression fittings

Package Quantity: 40 Units

Quantity

Specifications for Variant SKU: EG10-1/4B Parker \| 40 \|
Shape (Orientation):	Straight
Material(s):	Brass

Product Features:	Simple to Install and Use Suitable for pneumatic and medium pressure hydraulic applications Compatible with many industrial fluids Large product range: 22 configurations Excellent sealing due to the tightening of the olive onto the tube Metallic sealing guarantees maximum service life High strength brass for increased mechanical reliability
Wide Variety of Tubing:	Connection of different types of tubing and hose: metal, polymer, steel, rubber, etc. Multiple tube diameters can be connected using the Parker Legris reducer assembly system No insert required for rigid and semi-rigid polyamide tubing below 14 mm
Markets:	Pneumatic Machinery Equipment at Medium and High Pressure Miscellaneous Manufacturing Vehicle Assembly Facilities Machine Tools
Applications:	Packaging Lubrication Systems Cooling Systems Welding Robots Suitable for Vacuum Applications
Technical Characteristics:	Fluids: Water, machining oil, fuel, hydraulic oil, compressed air, chemical fluids, disinfectants Materials: steel, polymer, brass Pressure: Vacuum to 550 bar Temperature: -40°C to +250°C
Regulations:	CNOMO: E07.21.115N (for robotic equipment in the automotive industry) DI: 97/23/EC (PED) RG: 1907/2006 (REACH) DI: 2002/95/EC (RoHS) DI: 94/9/EC (ATEX)


Part Number	Connection 1 Thread Size	Connection 2 Tube O.D. (mm)	Weight
EG10-1/4B	1/4"	10 mm	.03 Kg
EG10-3/8B	3/8"	10 mm	.036 Kg
EG15-1/2B	1/2"	12 mm	.06 Kg
EG15-3/8B	3/4"	10 mm	.061 Kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
