EH22780 Aeroquip by Danfoss | Truck & Engine 4-Ply Silicone Turbo Hose | 5.00" ID | 3ft Length

EH22780 Aeroquip by Danfoss | Truck & Engine 4-Ply Silicone Turbo Hose | 5.00" ID | 3ft Length

$394.10 - $394.10
$394.10
$394.10 - $394.10
$394.10

Aeroquip® by Danfoss

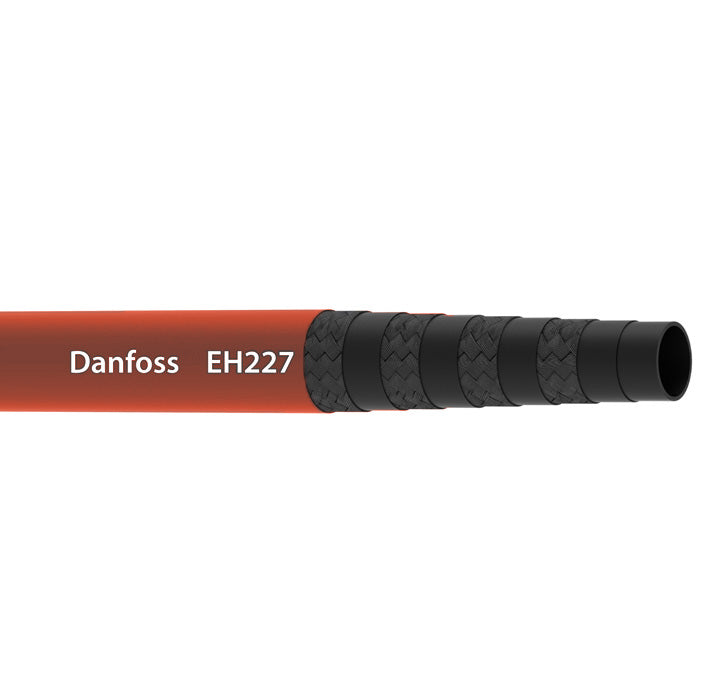

EH227 Series | Truck & Engine 4-Ply Turbo Hose

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.


Package Quantity: 3 ft

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: EH22780 Danfoss | 3 |
Brand: Aeroquip
Series: EH227 Series
Hose Color(s): Orange
Internal Diameter: 5.00in
Outer Diameter: 5.32in
Tubing Construction: Silicone
Hose Properties:
Application: High Temperature Engine. SAE Rating: Meets SAE J20R1, Class A
Other Ratings: N/A Tube: Silicone
Reinforcement: 4-ply Woven Aramid Cover: Red
Temperature Range: -65°F to +500°F
(-54°C to +260°C)
Part Number Hose ID Hose OD Min. Burst Pressure Length
mm in mm in bar psi ft/box
EH22704 6,40mm 0.25" 14,50mm 0.57" 32,9 bar 477 psi 3 ft/box
EH22706 9,70mm 0.38" 17,80mm 0.70" 32,9 bar 477 psi 3 ft/box
EH22708 12,70mm 0.50" 20,80mm 0.82" 29,3 bar 425 psi 3 ft/box
EH22710 16,00mm 0.63" 24,10mm 0.95" 25,9 bar 376 psi 3 ft/box
EH22712 19,10mm 0.75" 27,20mm 1.07" 22,4 bar 325 psi 3 ft/box
EH22714 22,40mm 0.88" 30,50mm 1.20" 22,4 bar 325 psi 3 ft/box
EH22716 25,40mm 1.00" 33,50mm 1.32" 20,6 bar 300 psi 3 ft/box
EH22717 26,90mm 1.06" 35,10mm 1.38" 20,6 bar 300 psi 3 ft/box
EH22718 28,70mm 1.13" 36,80mm 1.45" 19,0 bar 276 psi 3 ft/box
EH22720 31,80mm 1.25" 39,90mm 1.57" 19,0 bar 276 psi 3 ft/box
EH22721 33,30mm 1.31" 41,40mm 1.63" 19,0 bar 276 psi 3 ft/box
EH22722 35,10mm 1.38" 43,20mm 1.70" 19,0 bar 276 psi 3 ft/box
EH22724 38,10mm 1.50" 46,20mm 1.62" 17,2 bar 249 psi 3 ft/box
EH22726 41,10mm 1.62" 49,30mm 1.94" 17,2 bar 249 psi 3 ft/box
EH22728 44,40mm 1.75" 52,60mm 2.07" 15,5 bar 225 psi 3 ft/box
EH22730 47,80mm 1.88" 55,90mm 2.20" 13,8 bar 200 psi 3 ft/box
EH22732 50,80mm 2.00" 58,90mm 2.32" 13,8 bar 200 psi 3 ft/box
EH22734 54,10mm 2.13" 62,20mm 2.45" 12,1 bar 175 psi 3 ft/box
EH22736 57,20mm 2.25" 65,30mm 2.57" 12,1 bar 175 psi 3 ft/box
EH22738 60,50mm 2.38" 68,60mm 2.70" 12,1 bar 175 psi 3 ft/box
EH22740 63,50mm 2.50" 71,60mm 2.82" 10,3 bar 149 psi 3 ft/box
EH22742 66,50mm 2.62" 74,70mm 2.94" 8,6 bar 125 psi 3 ft/box
EH22744 69,80mm 2.75" 78,00mm 3.07" 8,6 bar 125 psi 3 ft/box
EH22746 73,20mm 2.88" 81,30mm 3.20" 6,0 bar 87 psi 3 ft/box
EH22748 76,20mm 3.00" 84,30mm 3.32" 6,0 bar 87 psi 3 ft/box
EH22750 79,50mm 3.13" 87,60mm 3.45" 5,2 bar 75 psi 3 ft/box
EH22752 82,60mm 3.25" 90,70mm 3.57" 5,2 bar 75 psi 3 ft/box
EH22754 85,90mm 3.38" 94,00mm 3.70" 5,2 bar 75 psi 3 ft/box
EH22756 88,90mm 3.50" 97,00mm 3.82" 5,2 bar 75 psi 3 ft/box
EH22758 92,20mm 3.63" 100,30mm 3.95" 3,8 bar 49 psi 3 ft/box
EH22760 95,20mm 3.75" 103,40mm 4.07" 3,8 bar 49 psi 3 ft/box
EH22764 101,60mm 4.00" 109,70mm 4.32" 3,8 bar 49 psi 3 ft/box
EH22772 114,30mm 4.50" 122,40mm 4.82" 3,8 bar 49 psi 3 ft/box
EH22780 127,00mm 5.00" 135,10mm 5.32" 3,8 bar 49 psi 3 ft/box

Bulk / By the Foot: We sell Danfoss hose in "Bulk Length" unless otherwise specified in the title or option selector as "Exact Length". When you buy "Bulk Length" hose you are agreeing to buy multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you need a single piece then you can select an "Exact Length" option or Contact Us for a quote.

Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc., or any other entity. Consult current master catalog for additional warnings and cautions.

Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
