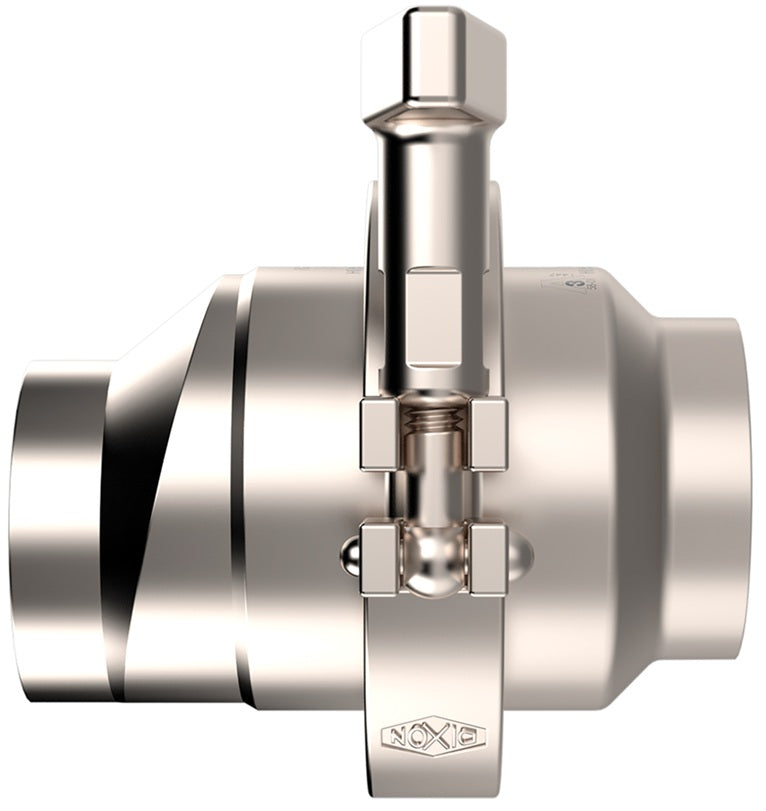

EHSCE100BB Dixon Valve EHSC Spring Check Valve - 1" Weld Connection - EPDM Gasket - 316L Stainless Steel

EHSCE100BB Dixon Valve EHSC Spring Check Valve - 1" Weld Connection - EPDM Gasket - 316L Stainless Steel

Save $39.95 Save $39.95
$306.18
$306.18 - $306.18
$306.18
$266.23
$266.23 - $266.23
$266.23

Dixon Sanitary Fittings EHSC Spring Check Valve - Weld Connection - 316L Stainless Steel

Designed to prevent reverse flow. The eccentric design makes them ideal for horizontal applications.
Specifications for Variant SKU: EHSCE100BB Dixon
Shape (Orientation): Straight
Ends Configuration: 1in Weld End, 1in Weld End, Some Ends Match
Material(s): 316L Stainless Steel
Seal Material(s): EPDM
Features:
  • Machined from solid bar
  • Standard O-ring (EPDM) and gasket seal design
  • Can be serviced in field (no special tools required)
  • Finish: sanitary polish 32 Ra
  • Temperature Range: 15° F to 200° F
Part Number Size Cracking Pressure Max. Operating Pressure
EHSCE050BB 1/2" 10.0 PSI 145 PSI
EHSCE075BB 3/4" 4.0 PSI 145 PSI
EHSCE100BB 1" 2.5 PSI 145 PSI
EHSCE150BB 1-1/2" 1.0 PSI 145 PSI
EHSCE200BB 2" 1.5 PSI 145 PSI
EHSCE250BB 2-1/2" 0.8 PSI 145 PSI
EHSCE300BB 3" 0.5 PSI 145 PSI
EHSCE400BB 4" 0.4 PSI 145 PSI
