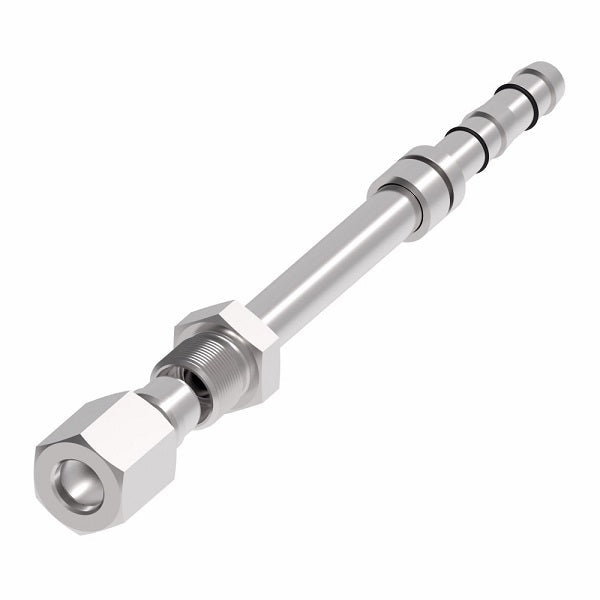

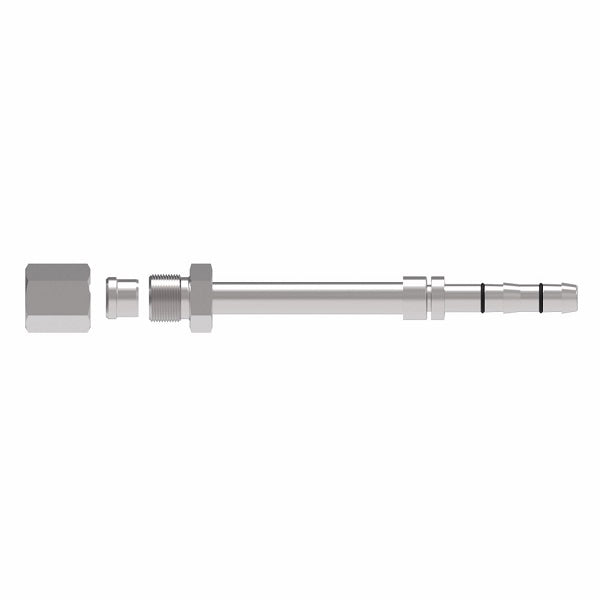

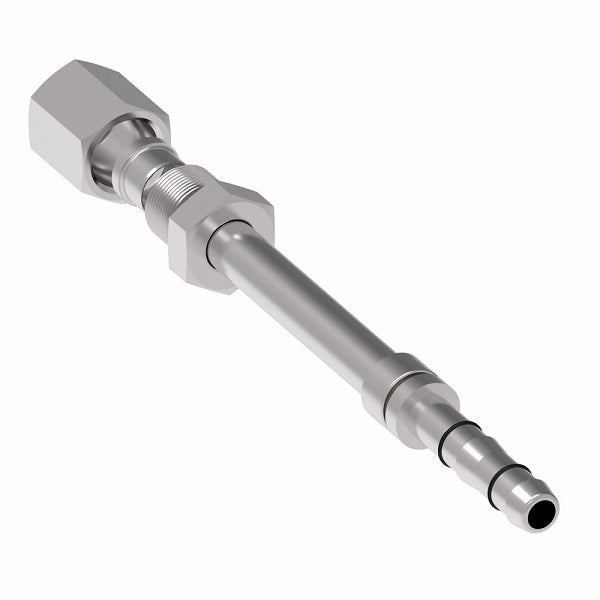

EJ3809-08-1012S E-Z Clip System by Danfoss | Compression Fitting | A/C Refrigeration Fitting | -10 Compression x -12 Hose Barb | Steel
EJ3809-08-1012S E-Z Clip System by Danfoss | Compression Fitting | A/C Refrigeration Fitting | -10 Compression x -12 Hose Barb | Steel
EJ3809-08-1012S E-Z Clip System by Danfoss | Compression Fitting | A/C Refrigeration Fitting | -10 Compression x -12 Hose Barb | Steel
EJ3809-08-1012S E-Z Clip System by Danfoss | Compression Fitting | A/C Refrigeration Fitting | -10 Compression x -12 Hose Barb | Steel

EJ3809-08-1012S E-Z Clip System by Danfoss | Compression Fitting | A/C Refrigeration Fitting | -10 Compression x -12 Hose Barb | Steel

$57.20 - $57.20
$57.20
$57.20 - $57.20
$57.20

Danfoss A/C & Refrigeration
E-Z Clip System - Compression Fitting - Straight

Clips & Cages Sold Separately.

For use with GH001 EverCool A/C & Refrigeration Hose.
Specifications for Variant SKU: EJ3809-08-1012S Danfoss
Brand: E-Z Clip
Shape (Orientation): Straight
Ends Configuration: 5/8in Tube Compression, 3/4in Hose Barb
Material(s): Steel
Compatible with the following Series: GH001 Series  |   GH134 Series
Additional Information:
Steel
Part Number		 Thread
"T" 		Hose Size A Ref. D Ref. Ref.

 Clip & Cage Kit
(Required)
EJ3809-11-0506S 1/2-20 -06 4.91" 3.38" 0.69" FF14171
EJ3809-01-0606S 9/16-18 -06 4.92" 3.40" 0.69" FF14171
EJ3809-02-0806S 3/4-16 -06 4.93" 3.40" 0.88" FF14171
EJ3809-03-0608S 9/16-18 -06 4.94" 3.40" 0.69" FF14171
EJ3809-04-0808S 3/4-16 -08 4.84" 3.30" 0.88" FF14172
EJ3809-05-1008S 7/8-14 -08 4.73" 3.19" 1.00" FF14172
EJ3809-06-0810S 3/4-16 -10 4.85" 3.30" 0.88" FF14173
EJ3809-07-1010S 7/8-14 -10 4.64" 3.09" 1.00" FF14173
EJ3809-08-1012S 7/8-14 -12 4.66" 3.09" 1.00" FF14174
EJ3809-09-1212S 1-1/16-12 -12 4.98" 3.40" 1.25" FF14174
EJ3809-10-1210S 1-1/16-12 -10 5.05" 3.50" 1.25" FF14173
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.

Shop Parts by Danfoss (Eaton - Aeroquip)
