EJ5041-0606S Aeroquip by Danfoss | Female ORS Swivel Long Drop 90° Elbow 100R5 Crimp Fitting | FJ Series | -06 Female O-Ring Face Seal Swivel x -06 Hose Barb | Steel

EJ5041-0606S Aeroquip by Danfoss | Female ORS Swivel Long Drop 90° Elbow 100R5 Crimp Fitting | FJ Series | -06 Female O-Ring Face Seal Swivel x -06 Hose Barb | Steel

Name: EJ5041-0606S Aeroquip by Danfoss | Female ORS Swivel Long Drop 90° Elbow 100R5 Crimp Fitting | FJ Series | -06 Female O-Ring Face Seal Swivel x -06 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: EJ5041-0606S Danfoss
Price: 56.04 USD
Availability: InStock

$56.04 - $56.04

$56.04

$56.04 - $56.04

$56.04

Aeroquip® by Danfoss

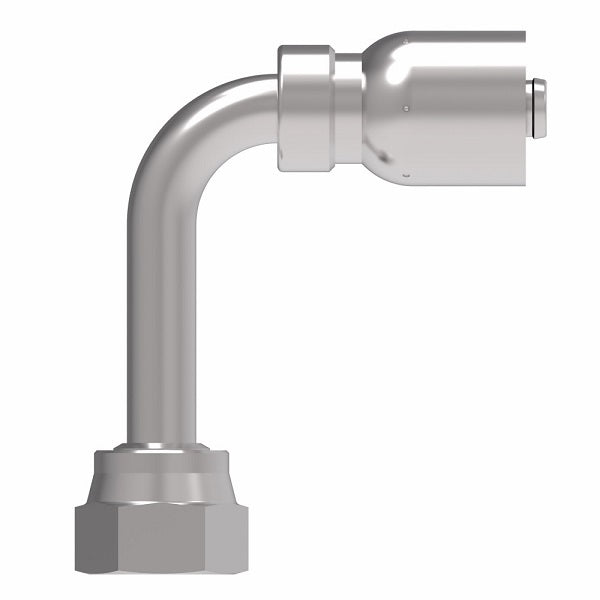

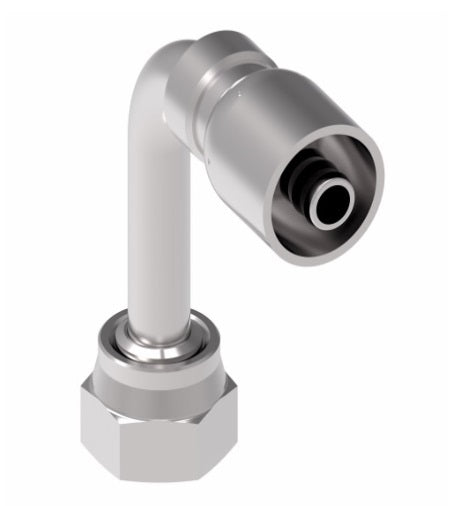

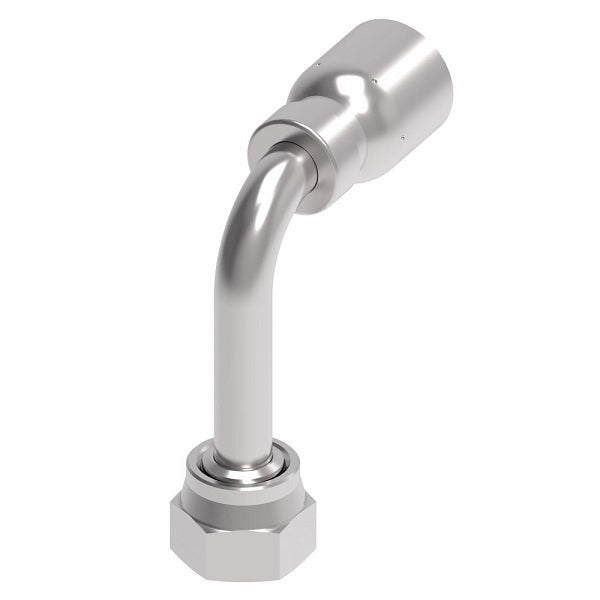

Truck and Fuel 100R5 Crimp Fitting - FJ Series - Female ORS Swivel Long Drop 100R5 Crimp Fitting - 90° Elbow

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: EJ5041-0606S Danfoss
Shape (Orientation):	90 Degree
Ends Configuration:	3/8in Female O-Ring Face Seal, 3/8in Hose Barb
Material(s):	Steel
Special Properties:	Swivel, Long Drop
Compatible with the following Series:	1503 Series \| FC234 Series \| FC300 Series \| FC350 Series \| FC355 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Hose Size	Thread	A	D	H	Hex
EJ5041-0606S	-06	11/16-16	1.98"	1.98"	2.10"	0.81"
EJ5041-1010S	-10	1-14	2.30"	1.42"	2.78"	1.13"
EJ5041-1616S	-16	1-7/16-12	3.19"	2.20"	4.50"	1.63"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
