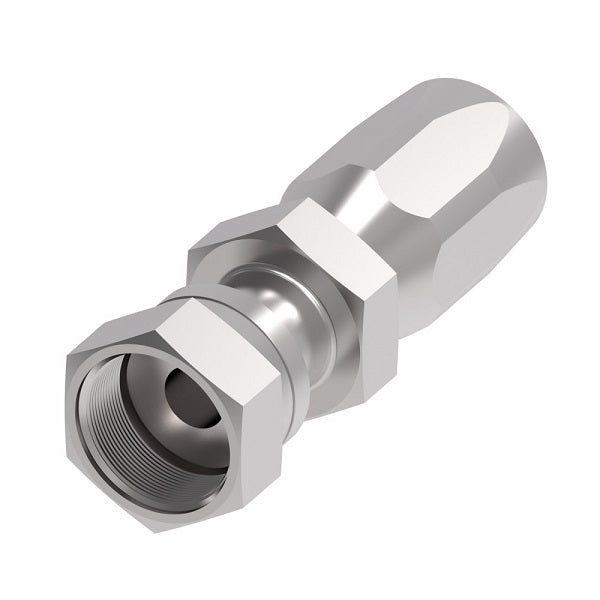

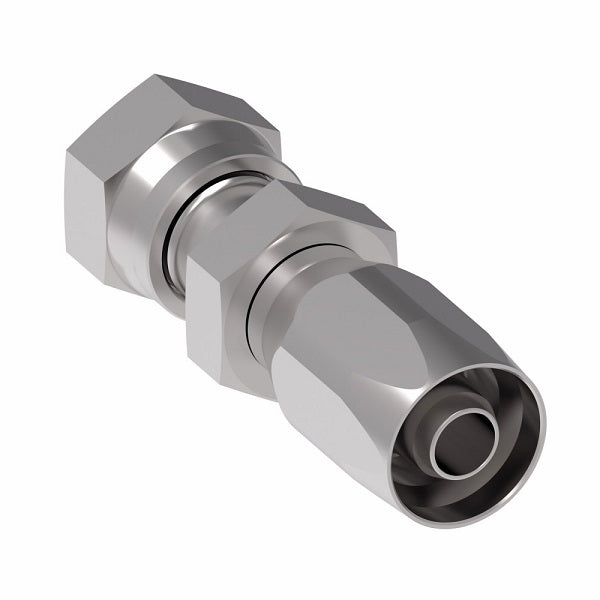

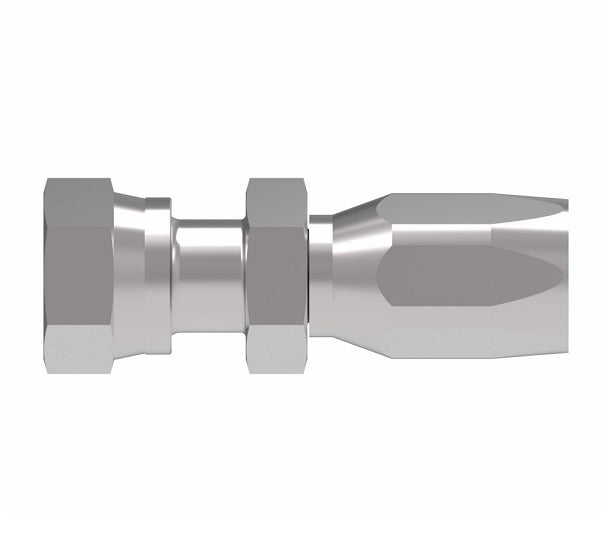

EJ5305-2424S by Danfoss | Female ORS Swivel Field Attachable Fitting | FC800 EverCool | -24 Female O-Ring Face Seal Swivel x -24 Reusable Hose End | Steel

EJ5305-2424S by Danfoss | Female ORS Swivel Field Attachable Fitting | FC800 EverCool | -24 Female O-Ring Face Seal Swivel x -24 Reusable Hose End | Steel

Name: EJ5305-2424S by Danfoss | Female ORS Swivel Field Attachable Fitting | FC800 EverCool | -24 Female O-Ring Face Seal Swivel x -24 Reusable Hose End | Steel
Brand: Danfoss/Eaton
SKU: EJ5305-2424S Danfoss
Price: 137.67 USD
Availability: InStock

$137.67 - $137.67

$137.67

$137.67 - $137.67

$137.67

Danfoss A/C & Refrigeration
FC800 EverCool Series - Female ORS Swivel Field Attachable Fitting - Straight

For use with FC800 EverCool A/C & Refrigeration Hose.

Quantity

Specifications for Variant SKU: EJ5305-2424S Danfoss
Shape (Orientation):	Straight
Ends Configuration:	1-1/2in Female O-Ring Face Seal, 1-1/2in Reusable Hose End
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	FC800 Series


Steel Part Number	Hose Size	Tube Size	Thread Size	A	Hose cut-off Factor	Hole dia.	Hex	O-Ring ref.
EJ5305-1212S	12"	12"	1-3/16-12	3.66"	2.14"	0.47"	1-1/4"	FF91026-12
EJ5305-1616S	16"	16"	1-7/16-12	3.38"	2.22"	0.69"	1-5/8"	FF91026-16
EJ5305-2020S	20"	20"	1-11/16-12	3.63"	2.31"	0.95"	1-7/8"	FF91026-20
EJ5305-2424S	24"	24"	2-12	3.79"	2.41"	1.16"	2-1/4"	FF91026-24
