EJ5359-2020S by Danfoss | Female 37° JIC Swivel 45° Tube Elbow Field Attachable Fitting | FC800 EverCool | -20 Female 37° JIC Swivel x -20 Reusable Hose End | Steel

EJ5359-2020S by Danfoss | Female 37° JIC Swivel 45° Tube Elbow Field Attachable Fitting | FC800 EverCool | -20 Female 37° JIC Swivel x -20 Reusable Hose End | Steel

Name: EJ5359-2020S by Danfoss | Female 37° JIC Swivel 45° Tube Elbow Field Attachable Fitting | FC800 EverCool | -20 Female 37° JIC Swivel x -20 Reusable Hose End | Steel
Brand: Danfoss/Eaton
SKU: EJ5359-2020S Danfoss
Price: 131.14 USD
Availability: InStock

$131.14 - $131.14

$131.14

$131.14 - $131.14

$131.14

Danfoss A/C & Refrigeration

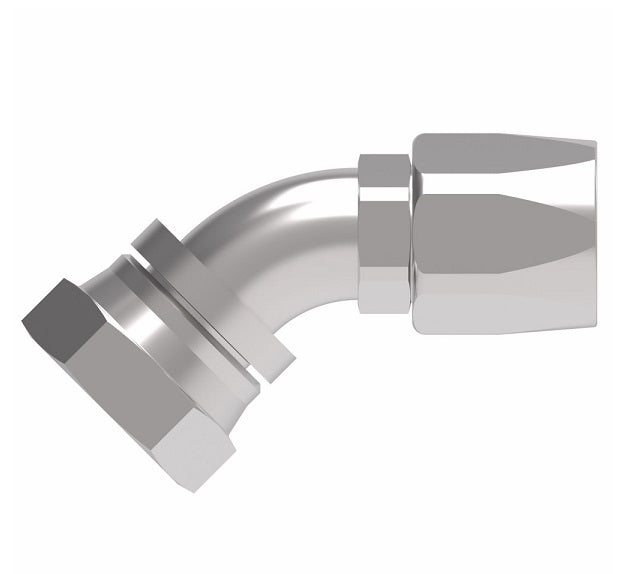

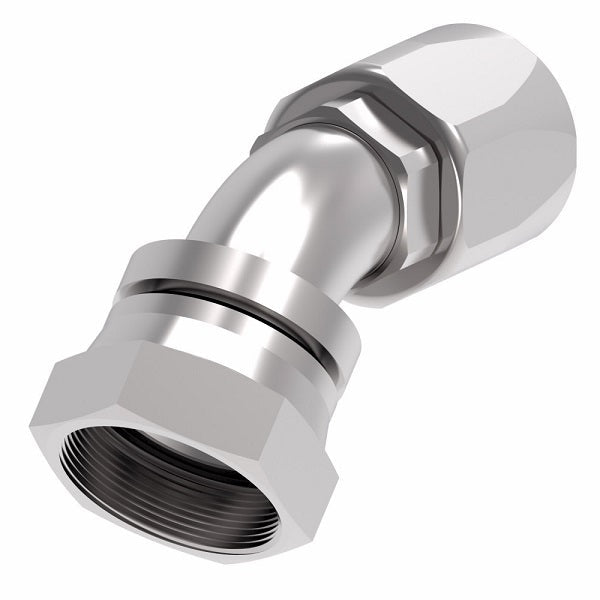

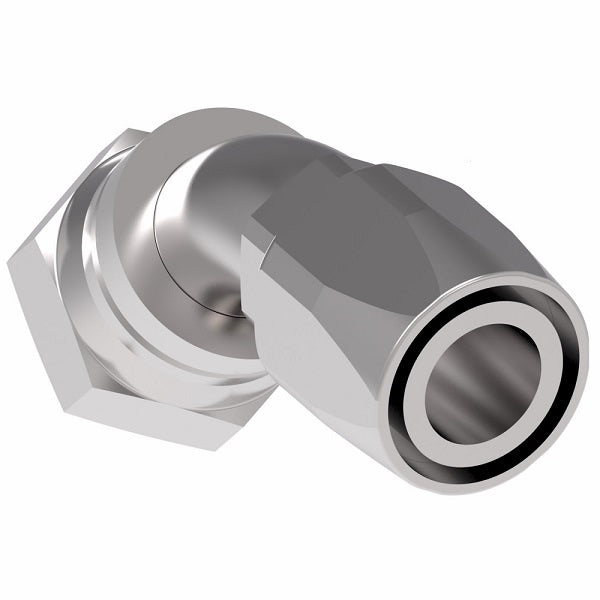

FC800 EverCool Series - Female 37° JIC Swivel Field Attachable Fitting - 45° Elbow

For use with FC800 EverCool A/C & Refrigeration Hose.

Specifications for Variant SKU: EJ5359-2020S Danfoss
Shape (Orientation):	45 Degree
Ends Configuration:	1-1/4in Female JIC, 1-1/4in Reusable Hose End
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	FC800 Series


Steel Part Number	Hose Size	Tube Size	Thread Size	A	Hose cut-off Factor	Drop dia.	Hole dia.	Hex	O-Ring ref
EJ5359-1212S	12"	12"	1-1/16x12	3.78"	2.21"	0.78"	0.47"	1-1/4"	FF91026-12
EJ5359-1616S	16"	16"	1-5/16x12	3.75"	2.48"	1.07"	0.69"	1-1/2"	FF91026-16
EJ5359-2020S	20"	20"	1-5/8x12	4.21"	2.85"	1.22"	0.95"	2"	FF91026-20

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
