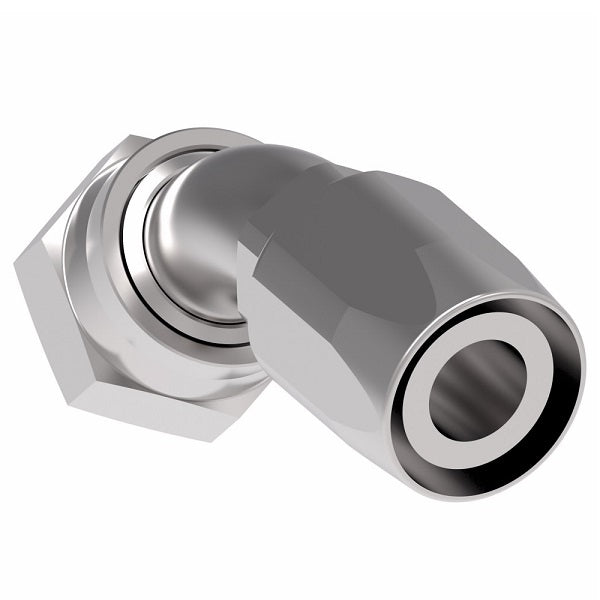

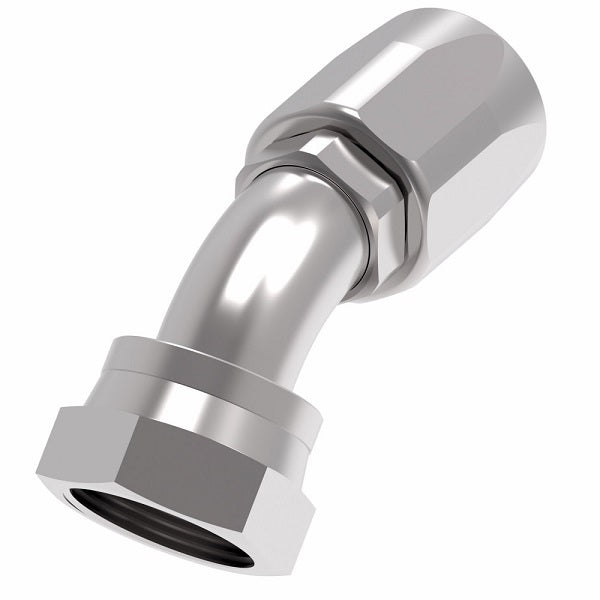

EJ5361-1616S by Danfoss | Female ORS Swivel 45° Tube Elbow Field Attachable Fitting | FC800 EverCool | -16 Female O-Ring Face Seal Swivel x -16 Reusable Hose End | Steel

EJ5361-1616S by Danfoss | Female ORS Swivel 45° Tube Elbow Field Attachable Fitting | FC800 EverCool | -16 Female O-Ring Face Seal Swivel x -16 Reusable Hose End | Steel

Name: EJ5361-1616S by Danfoss | Female ORS Swivel 45° Tube Elbow Field Attachable Fitting | FC800 EverCool | -16 Female O-Ring Face Seal Swivel x -16 Reusable Hose End | Steel
Brand: Danfoss/Eaton
SKU: EJ5361-1616S Danfoss
Price: 101.56 USD
Availability: InStock

$101.56 - $101.56

$101.56

$101.56 - $101.56

$101.56

Danfoss A/C & Refrigeration
FC800 EverCool Series - Female ORS Swivel Field Attachable Fitting - 45° Elbow

For use with FC800 EverCool A/C & Refrigeration Hose.

Specifications for Variant SKU: EJ5361-1616S Danfoss
Shape (Orientation):	45 Degree
Ends Configuration:	1in Female O-Ring Face Seal, 1in Reusable Hose End
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	FC800 Series


Steel Part Number	Hose Size	Tube Size	Thread Size	A	Hose cut-off Factor	Drop dim.	Hole dia.	Hex	O-Ring ref
EJ5361-1212S	12"	12"	1-3/16x12	3.84"	2.26"	0.83"	0.47"	1-3/8"	FF91026-12
EJ5361-1616S	16"	16"	1-7/16x12	3.62"	2.35"	0.94"	0.69"	1-5/8"	FF91026-16
EJ5361-2020S	20"	20"	1-11/16x12	4.08"	2.72"	0.98"	0.95"	1-7/8"	FF91026-20
EJ5361-2424S	24"	24"	2x12	4.32"	2.86"	1.06"	1.16"	2-1/4"	FF91026-24
