EJ5362-2424S by Danfoss | Female ORS Swivel 90° Tube Elbow Field Attachable Fitting | FC800 EverCool | -24 Female O-Ring Face Seal Swivel x -24 Reusable Hose End | Steel

EJ5362-2424S by Danfoss | Female ORS Swivel 90° Tube Elbow Field Attachable Fitting | FC800 EverCool | -24 Female O-Ring Face Seal Swivel x -24 Reusable Hose End | Steel

Name: EJ5362-2424S by Danfoss | Female ORS Swivel 90° Tube Elbow Field Attachable Fitting | FC800 EverCool | -24 Female O-Ring Face Seal Swivel x -24 Reusable Hose End | Steel
Brand: Danfoss/Eaton
SKU: EJ5362-2424S Danfoss
Price: 209.86 USD
Availability: InStock

$209.86 - $209.86

$209.86

$209.86 - $209.86

$209.86

Danfoss A/C & Refrigeration

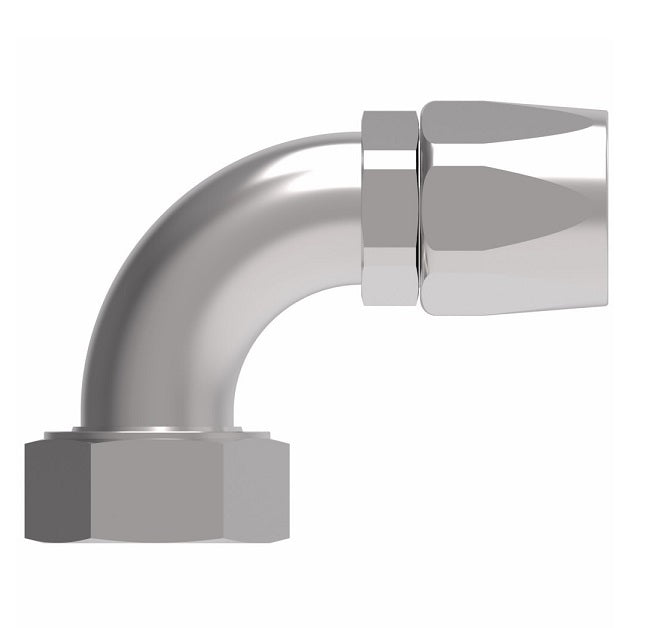

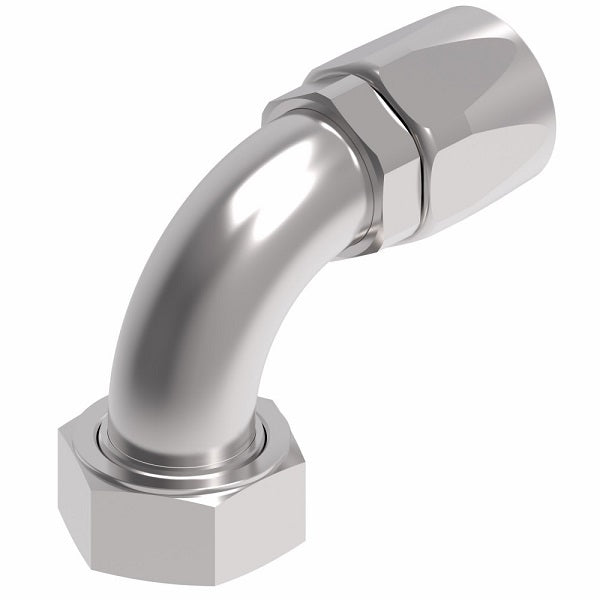

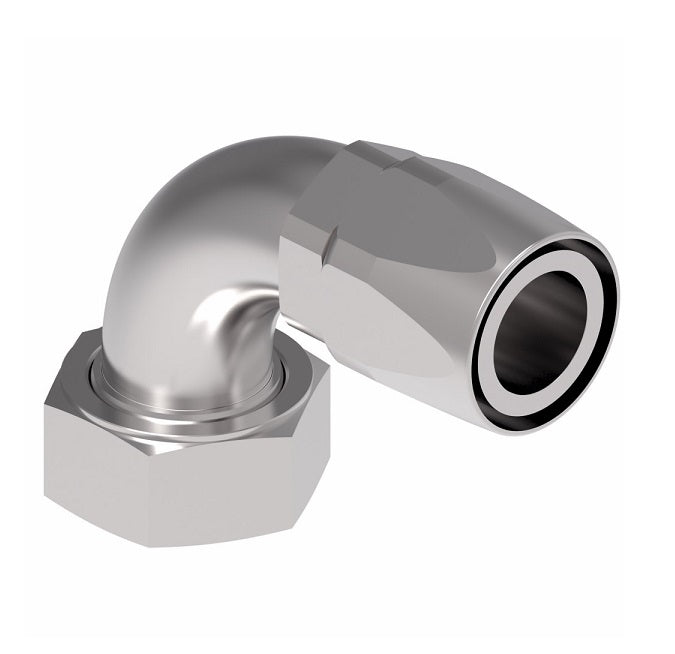

FC800 EverCool Series - Female ORS Swivel Field Attachable Fitting - 90° Elbow

For use with FC800 EverCool A/C & Refrigeration Hose.

Specifications for Variant SKU: EJ5362-2424S Danfoss
Shape (Orientation):	90 Degree
Ends Configuration:	1-1/2in Female O-Ring Face Seal, 1-1/2in Reusable Hose End
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	FC800 Series


Steel Part Number	Hose Size	Tube Size	Thread Size	A	Hose cut-off Factor	Drop dim.	Hole dia.	Hex	O-Ring ref
EJ5362-1212S	12"	12"	1-3/16x12	3.74"	2.17"	1.90"	0.47"	1-3/8"	FF91026-12
EJ5362-1616S	16"	16"	1-7/16x12	3.55"	2.28"	2.22"	0.69"	1-5/8"	FF91026-16
EJ5362-2020S	20"	20"	1-11/16x12	4.02"	2.65"	2.50"	0.95"	1-7/8"	FF91026-20
EJ5362-2424S	24"	24"	2x12	4.42"	2.97"	2.70"	1.16"	2-1/4"	FF91026-24
