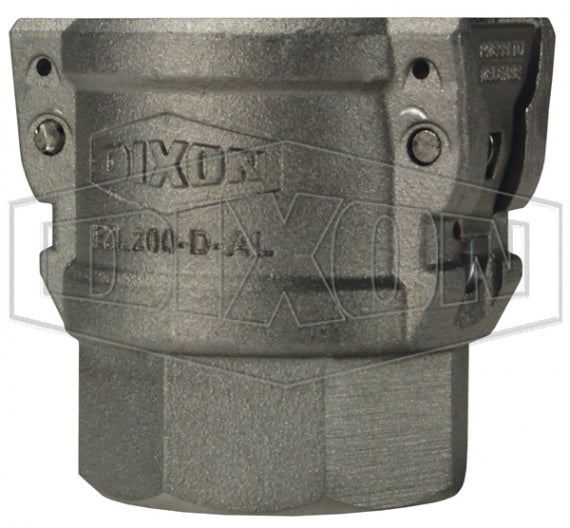

EZL200-D-AL by Dixon Valve | EZLink® Armless Cam & Groove Coupler | Type D | 2" Coupler x 2" Female NPT | Aluminum

EZL200-D-AL by Dixon Valve | EZLink® Armless Cam & Groove Coupler | Type D | 2" Coupler x 2" Female NPT | Aluminum

Save $32.85 Save $32.85
$82.12
$82.12 - $82.12
$82.12
$49.27
$49.27 - $49.27
$49.27

Dixon Valve
EZLink® Armless Cam & Groove | Type D Coupler | Coupler x Female NPT

Automatic couplers push-to-connect, providing a reliable connection.
Specifications for Variant SKU: EZL200-D-AL Dixon
Brand: EZLink, King Crimp
Shape (Orientation): Straight
Cam Type: Type D
Ends Configuration: 2in Female Cam & Groove, 2in Female NPT
Material(s): 316 Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Applications:
  • Transfer and/or unloading of fuels (gasoline or diesel) from tank truck to storage tanks.
  • Transfer of liquids compatible with the available coupling and gasket materials.
Features:
  • Low profile allows easy connection and disconnection in tight applications.
  • Coupler push tabs can be locked with safety pins and/or zip tie.
  • Compatible with standard cam & groove adapters.
  • Lifetime warranty on stainless steel tabs.
Materials:
  • Couplings and dust caps: A356 aluminum, 316 stainless steel.
  • Coupler tabs and springs: 316 stainless steel.
  • Gasket: nitrile rubber.
Specifications:
  • Maximum working pressure with King Crimp® ferrules: 2" 250 PSI, 3" and 4" 150 PSI
  • Maximum working pressure with crimp sleeves: 2" 250 PSI, 3" 125 PSI, 4" 110 PSI
  • Maximum working pressure with band clamps: 2" 250 PSI, 3" 125 PSI, 4" 100 PSI
  • Gasket temperature range: 5°F to 180°F (-15°C to 82°C)
Note:
  • Only use EZLink gaskets and tabs for this coupling system. Traditional cam & groove handles and gaskets, or other types of seals, are not compatible and will fail.
A356 Aluminum
Part Number		 316 Stainless Steel
Part Number		 Size
EZL150-D-AL EZL150-D-SS 1-1/2"
EZL200-D-AL EZL200-D-SS 2"
EZL300-D-AL EZL300-D-SS 3"
EZL400-D-AL - 4"
