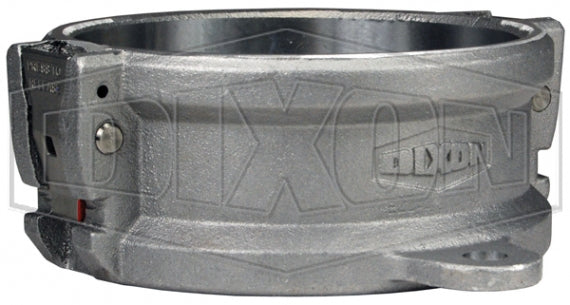

EZL200-DC-AL by Dixon Valve | EZLink® Armless Cam & Groove Dust Cap | Type DC | 2" Size | Aluminum

Name: EZL200-DC-AL by Dixon Valve | EZLink® Armless Cam & Groove Dust Cap | Type DC | 2" Size | Aluminum
Brand: Dixon
SKU: EZL200-DC-AL Dixon
Price: 50.43 USD
Availability: InStock

Save $33.62

$84.05

$84.05 - $84.05

$84.05

$50.43

$50.43 - $50.43

$50.43

Dixon Valve
EZLink® Armless Cam & Groove | Type DC Dust Cap

Automatic couplers push-to-connect, providing a reliable connection.

Specifications for Variant SKU: EZL200-DC-AL Dixon
Brand:	EZLink, King Crimp
Cam Type:	Type DC
Ends Configuration:	2in Female Cam & Groove
Material(s):	Aluminum

Applications:
Transfer and/or unloading of fuels (gasoline or diesel) from tank truck to storage tanks. Transfer of liquids compatible with the available coupling and gasket materials.
Features:
Low profile allows easy connection and disconnection in tight applications. Coupler push tabs can be locked with safety pins and/or zip tie. Compatible with standard cam & groove adapters. Lifetime warranty on stainless steel tabs.
Materials:
Couplings and dust caps: A356 aluminum, 316 stainless steel. Coupler tabs and springs: 316 stainless steel. Gasket: nitrile rubber.
Specifications:
Maximum working pressure with King Crimp® ferrules: 2" 250 PSI, 3" and 4" 150 PSI Maximum working pressure with crimp sleeves: 2" 250 PSI, 3" 125 PSI, 4" 110 PSI Maximum working pressure with band clamps: 2" 250 PSI, 3" 125 PSI, 4" 100 PSI Gasket temperature range: 5°F to 180°F (-15°C to 82°C)
Note:
Only use EZLink gaskets and tabs for this coupling system. Traditional cam & groove handles and gaskets, or other types of seals, are not compatible and will fail.

A356 Aluminum Part Number	316 Stainless Steel Part Number	Size
EZL150-DC-AL	EZL150-DC-SS	1-1/2"
EZL200-DC-AL	EZL200-DC-SS	2"
EZL300-DC-AL	EZL300-DC-SS	3"
EZL400-DC-AL	-	4"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
