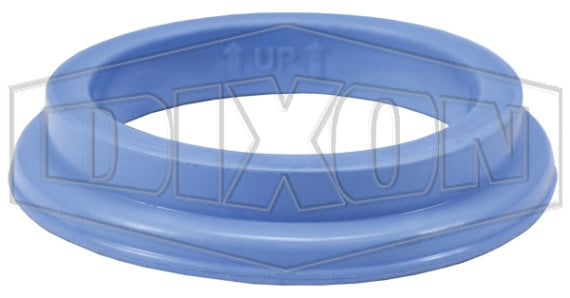

EZL200-G-FV by Dixon Valve | EZLink® Armless Cam & Groove | Replacement Gasket | 2" Size | Fluorosilicone

EZL200-G-FV by Dixon Valve | EZLink® Armless Cam & Groove | Replacement Gasket | 2" Size | Fluorosilicone

Save $21.79 Save $21.79
$54.48
$54.48 - $54.48
$54.48
$32.69
$32.69 - $32.69
$32.69

Dixon Valve
EZLink® Armless Cam & Groove | Replacement Gasket
Specifications for Variant SKU: EZL200-G-FV Dixon
Brand: EZLink, King Crimp
Material(s): Fluorosilicone
Safety Notes:
  • Take the seal out and check for any cracks, tears, nicks and make sure media is not trapped in the bellows area. If any damage to the seal, replace with a new Dixon® bellow seal that is compatible with the material that is to be conveyed.
  • The seal is marked with directional arrows and the word 'up' in 4 locations on the inside diameter indicating which way to insert it into the coupler. Arrows should point at you.
  • Warning! Only use EZLink™ seals for this coupling system. Traditional Cam & Groove gaskets, or other types of seals are not compatible and will fail.
Nitrile Rubber
Part Number		 Fluorosilicone
Part Number		 FKM-A
Part Number		 Size
EZL150-G-BU EZL150-G-FV EZL150-G-VI 1-1/2"
EZL200-G-BU EZL200-G-FV EZL200-G-VI 2"
EZL300-G-BU EZL300-G-FV EZL300-G-VI 3"
EZL400-G-BU EZL400-G-FV EZL400-G-VI 4"
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
