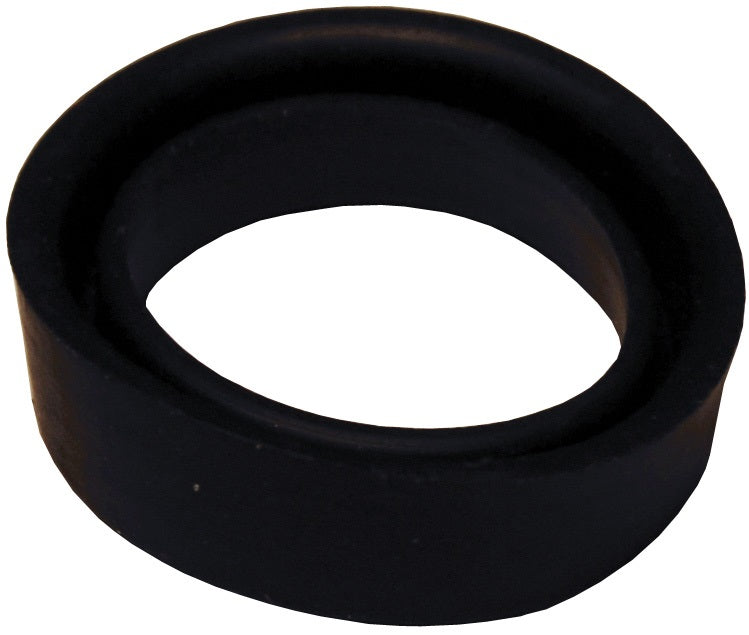

F-4N-SKIT by Dixon Valve | Pneumatic Quick Disconnect Coupling | Dix-Lock® N-Series | 1/2" Body size | Bowes Interchange Replacement Seal | FKM

Save $6.40

$16.00

$16.00 - $16.00

$16.00

$9.60

$9.60 - $9.60

$9.60

Dixon Valve & Coupling
Pneumatic Coupling: Dix-Lock N-Series Bowes Interchange Replacement Seal

Specifications for Variant SKU: F-4N-SKIT Dixon
Brand:	Dix-Lock
Series:	N-Series
Seal Material(s):	Viton/FKM

Compatibility & Interchange:	Bowes Interchange Bayonet Style Interchangeable with Bowes 51000-Series, National Series 'B', MacDonald Quick-Action, Campbell Single-Lock Conforms to MIL-C-3486 and A-A-50431A standards.
Construction:	Pneumatically Energized Seal
Safety Notes:	It is important to be safe when installing quick disconnect couplings into a pneumatic circuit. Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18" long, between the tool and the coupling, to prevent damage to the coupling. To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
Additional Information:	For a selection guide, cross reference tables, safety info, fluid compatibility, and other general info, please see: Dixon Valve Quick Disconnect Guide.PDF

Dix-Lock N-Series \| Bowes Interchange Replacement Seal
Part Number	Body Size	Coupler Style	Seal Material
3N-SKIT	3/8"	All	Nitrile
43N-SKIT	1/2"	All	Nitrile
F-4N-SKIT	1/2"	All	FKM

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
