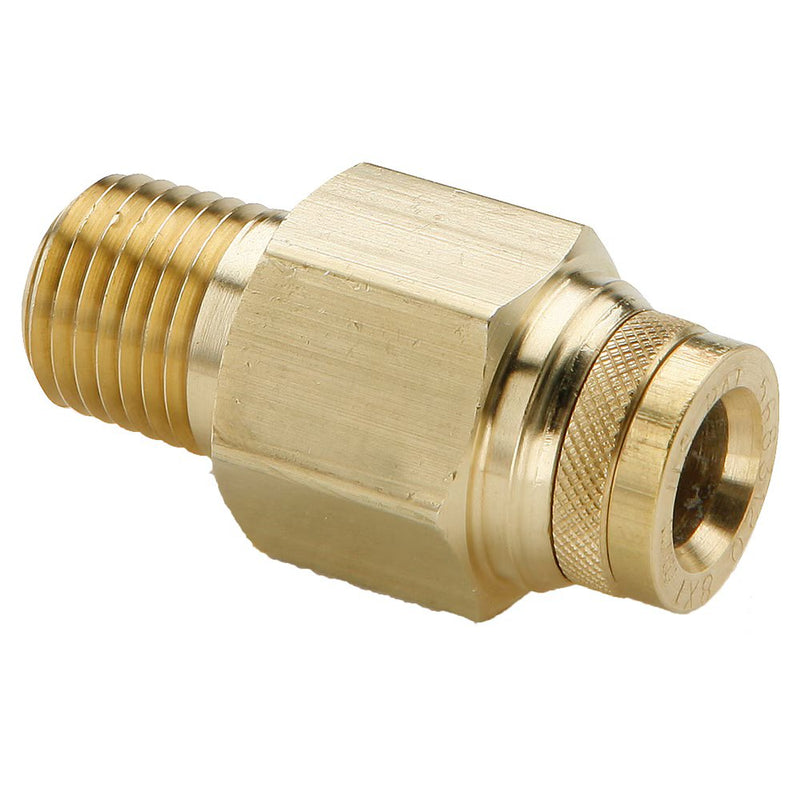

F2PMTB8-1/8 by Parker | Threaded Fitting | 8mm Push-to-Connect Connector x 1/8" Male Pipe Thread | 33.79mm Length | Straight | Brass | Pack of 10

Save $213.39

$533.48

$533.48 - $533.48

$533.48

$320.09

$320.09 - $320.09

$320.09

by Parker Hannifin
Metric Prestomatic Fittings:Male Connector F2PMTB

Package Quantity: 10 Units

Specifications for Variant SKU: F2PMTB8-1/8 Parker \| 10 \|
Brand:	Prestomatic
Series:	F2PMTB Series
Shape (Orientation):	Straight
Material(s):	Brass, Stainless Steel
Seal Material(s):	Buna-N/Nitrile Rubber

Product Features:	Brass Collet Buna N O-ring Stainless Steel Tube Support Meets D.O.T. FMVSS571.106 Meets DIN 74324
Markets:	Heavy Duty Truck Trailer Mobile
Applications:	Air Brakes Air Tanks Air Ride Sliders Tire Inflation Primary & Secondary Air Lines
Specification:
Pressure Range:	Up to 250 PSI (17.2 bar)
Temperature Range:	-40° to +200° F (-40° to +93.3° C)
Compatible Tubing:	DIN 73378 Virgin Nylon SAE J844 Type A & B nylon tubing


Part Number	Tube	Pipe Thread	L	Hex	Flow Diameter (D)
F2PMTB8-1/8	8 mm	1/8"	33.79 mm	19 mm	4.90 mm
F2PMTB10-1/4	8 mm	1/4"	33.79 mm	19 mm	4.90 mm

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
