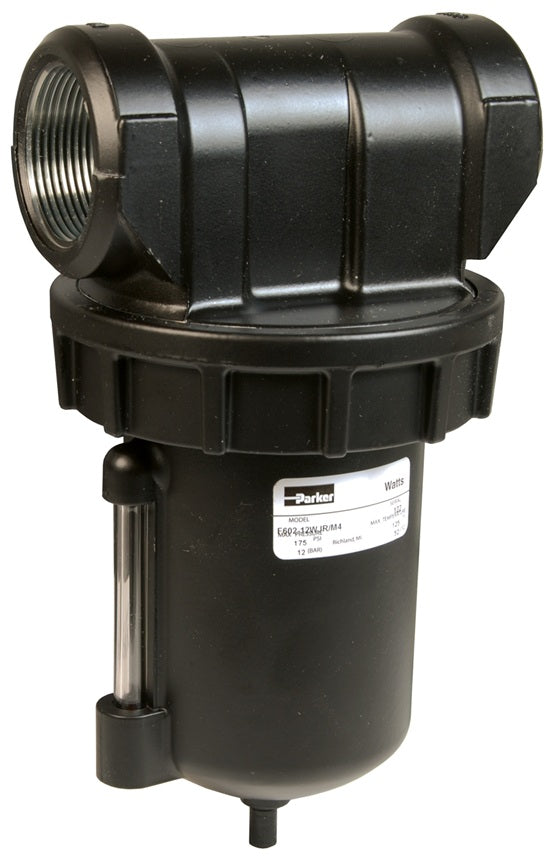

F602-12WJ Watts by Dixon Valve | Hi-Flow F602-Series | Filter | 1-1/2" Size | 450 SCFM | Manual Drain | 16 oz. Bowl | Zinc Body with Sight Glass

Save $209.25

$523.12

$523.12 - $523.12

$523.12

$313.87

$313.87 - $313.87

$313.87

Dixon Valve
Watts | F602-Series Hi-Flow | Filter

16 oz. bowl

Specifications for Variant SKU: F602-12WJ Dixon
Brand:	Watts
Series:	Hi-Flow F602-Series

Features:
40 micron polypropylene element. 16 oz. bowl. Zinc Body with Sight Glass.
Specifications:
Automatic drain operating conditions: Temperature range: 40°F (4°C) to 120°F (49°C) Maximum operating: 175 PSIG (12 bar) Manual drain operating conditions: Temperature range: 40°F (4°C) to 150°F (66°C) Maximum operating: 250 PSIG (17 bar) FRL's are designed for air service only, unless otherwise indicated. SCFM ratings given at 90 PSIG inlet pressure.

Part Number Automatic Drain	Part Number Manual Drain	Size	Flow (SCFM)
F602-06WJR	F602-06WJ	3/4"	270 SCFM
F602-08WJR	F602-08WJ	1"	300 SCFM
F602-12WJR	F602-12WJ	1-1/2"	450 SCFM
