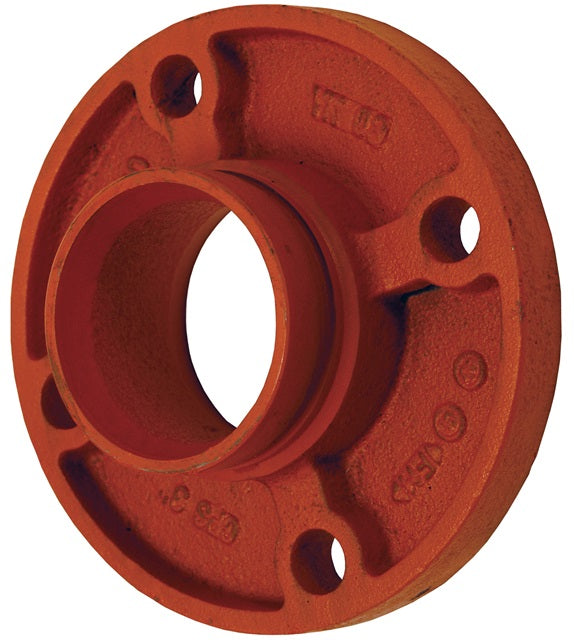

FA60 by Dixon Valve | Series-FA | Flange Adapter | 8 Bolt | 6" Nominal Size | 6.625" Pipe OD | Ductile Iron

Save $70.82

$177.05

$177.05 - $177.05

$177.05

$106.23

$106.23 - $106.23

$106.23

Dixon Valve
Flange Adapter | Series-FA

Used to connect an ANSI Class 125 and 150 flange to a grooved pipe using a grooved clamp.

Quantity

Specifications for Variant SKU: FA60 Dixon
Series:	Series-FA
Shape (Orientation):	Straight
Ends Configuration:	6in Grooved End, 6in 150# Flange
Material(s):	Ductile Iron

Features:
Provides a rigid one-piece connection that can be disconnected by removing the clamp assembly, assemble to another flange, position bolt heads on the adapter (grooved) side
Material:
Ductile iron body with rust inhibiting paint.


Ductile Iron Part Number	Nominal Size	Pipe O.D.	Maximum Working Pressure PSI at 70°F (21°C)	Flange Dimensions		Bolts
Ductile Iron Part Number	Nominal Size	Pipe O.D.	Maximum Working Pressure PSI at 70°F (21°C)	A	B	Qty	Size
FA20	2"	2.375"	300 PSI	6"	2-3/8"	4	5/8"
FA30	3"	3.500"	300 PSI	7-1/4"	2-3/8"	4	5/8"
FA40	4"	4.500"	300 PSI	8-1/2"	2-3/8"	8	5/8"
FA60	6"	6.625"	300 PSI	11"	2-9/16"	8	3/4"
FA80	8"	8.625"	300 PSI	13-1/4"	3"	8	3/4"
