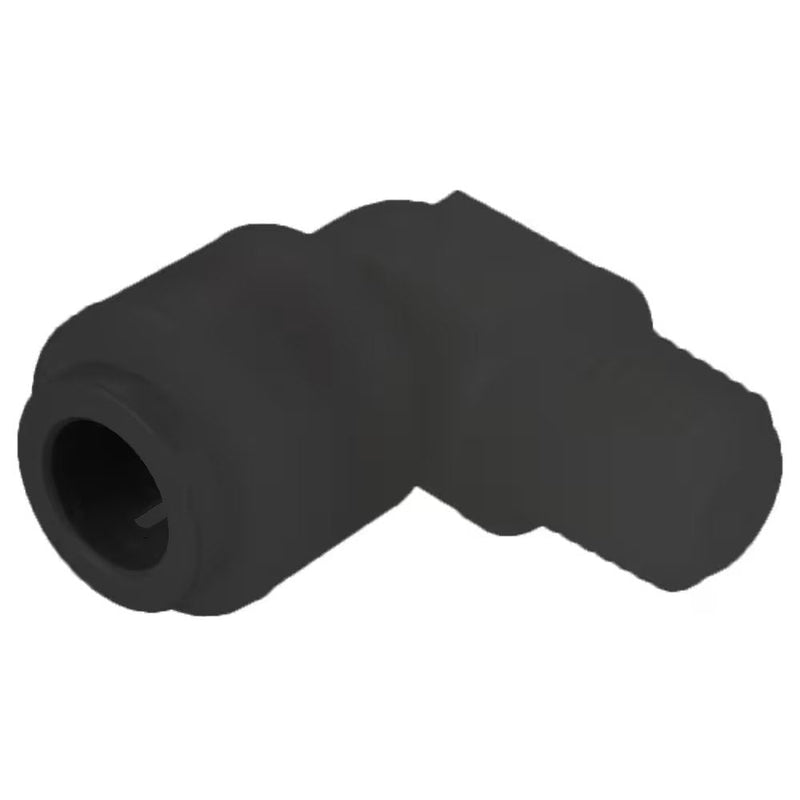

FB4ME6-HBLK by Parker | TrueSeal™ Threaded Fittings | 1/4" Push-to-Connect x 3/8" Male NPTF Thread | 90° Elbow | Black | Kynar®

FB4ME6-HBLK by Parker | TrueSeal™ Threaded Fittings | 1/4" Push-to-Connect x 3/8" Male NPTF Thread | 90° Elbow | Black | Kynar®

Save $0.62 Save $0.62
$7.43
$7.43 - $7.43
$7.43
$6.81
$6.81 - $6.81
$6.81

by Parker Hannifin
TrueSeal™ Fittings:ME - Male Elbow
Specifications for Variant SKU: FB4ME6-HBLK Parker
Brand: TrueSeal™
Series: ME Series
Shape (Orientation): 90° Elbow
Material(s): PVDF
Seal Material(s): FKM
Special Properties: Food Grade, Filtration
Product Features:
  • Acetal and Black Polypropylene (EPDM seals and metal gripping collet standard
  • White Polypropylene (EPDM seals and plastic gripping collet standard
  • Black Kynar (Fluorocarbon (FKM) seals and black kynar metal gripping collet standard
  • Gripping ring with stainless steel bite edge or with an engineered thermoplastic bite edge
  • FDA compliant, NSF/ANSI 51
  • Gray acetal and Black Polypropylene NSF/ANSI/CAN 61
Markets:
  • Food
  • Potable Water
  • Chemical
  • Filtration
Applications:
  • Air
  • Water
  • Soft Drinks
  • Beer
  • Wine
  • Dyes
  • Vacuum
Pressure Range: Acetal and Kynar:
  • 1/4", 5/16", 3/8" Vacuum to 300 PSI (20.7 bar) 1/2" Vacuum to 250 PSI (17.2 bar)
    • Polypropylene:
  • 1/4", 3/8", 1/2" Vacuum to 150 PSI (10.3 bar)
Temperature Range:
Acetal:
  • -20° to +180° F (-28.9° to +82.2° C)
    		•
    Polypropylene:
  • 0° to +225° F (-17.8° to +107.2° C)
    		•  Kynar:
  • 0° to +275° F (-17.8° to +135° C)
    		•
    Compatible Tubing:
    • Polyethylene
    • Polypropylene**
    • Nylon**
    • Vinyl+
    • Fluoropolymer**
    • Polyurethane+
    • *Kynar®

    * Registered trademark of The Arkema Group.
    ** Metal gripper required (-MG & -HBLK suffix).
    + Tube Support required.

    Gray Acetal EPDM Seal Black PPL EPDM Seal White PPL EPDM Seal Black Kynar FKM Seal Nom. Tube O.D. NPTF Thread Size M N Flow Diameter (D)
    A4ME2-MG PPB4ME2-MG PP4ME2 FB4ME2-HBLK 1/4" 1/8" .84" .94" .175"
    A4ME4-MG PPB4ME4-MG PP4ME4 FB4ME4-HBLK 1/4" 1/4" .84" .94" .175"
    A4ME6-MG PPB4ME6-MG PP4ME6 FB4ME6-HBLK 1/4" 3/8" .84" 1.04" .175"
    A5ME4-MG - - FB5ME4-HBLK 5/16" 1/4" 1.03" 1.08" .175"
    A5ME6-MG - - FB5ME6-HBLK 5/16" 3/8" 1.03" 1.06" .188"
    A6ME4-MG - PP6ME4 FB6ME4-HBLK 3/8" 1/4" 1.03" 1.08" .250"
    A6ME6-MG PPB6ME6-MG PP6ME6 FB6ME6-HBLK 3/8" 3/8" 1.03" 1.06" .250"
