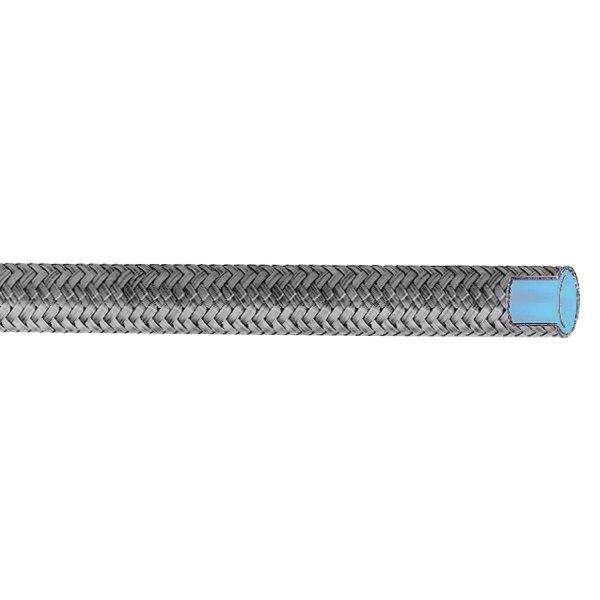

FBF0800 Eaton Aeroquip® -08 A/C Hose - Stainless Steel Cover

FBF0800 Eaton Aeroquip® -08 A/C Hose - Stainless Steel Cover

$18.67 - $18.67
$18.67
$21.24
$21.24 - $21.24
$21.24

Eaton Aeroquip® High Performance
A/C Hose

This new and innovative product offers discriminating motorsport enthusiasts a superior hose and fitting combination specifically designed for street rod A/C component applications. This attractive hose has a stainless steel outerbraid with a nylon inner tube for superior refrigerant performance.

Note: Always be sure to use the correct system lubricant for your A/C system. Most R-12 systems use mineral oil, while most R-134a systems use a synthetic lubricant called Polyalkylene Glycol (PAG).
Specifications for Variant SKU: FBF0800 Eaton HP
Brand: Aeroquip Performance Products
Series: Teflon Racing Hose
Hose Color(s): Metallic
Internal Diameter: 0.43in
Outer Diameter: 0.54in
Tubing Construction: Nylon
Cover Construction: Stainless Steel Braid

SPECIFICATIONS

Application: Air conditioning lines SAE Rating: N/A
Other Ratings: Extensively field and lab tested with R-134a refrigerant Tube: Nylon tube for outstanding refrigerant performance
Reinforcement: Stainless Steel outerbraid Cover: Stainless Steel outerbraid
Temperature Range: -40°F to +250°F (-40°C to +121°C) Fittings: A/C Hose Fittings
Bulk Part Number Hose Dash Size Hose ID
(in)		 Hose OD
(in)		 Max. Operating Pressure
(PSI)		 Min. Bend Radius
(in)		 Weight per Foot
(lbs)
FBF0600 -06 0.33" 0.44" 500 PSI 4.00" 0.08 lbs.
FBF0800 -08 0.43" 0.54" 500 PSI 5.25" 0.10 lbs.
FBF1000 -10 0.51" 0.63" 500 PSI 6.50" 0.14 lbs.

Warning: Do not mix and match hose and fitting manufactures with your hose assemblies. Each manufacturer of hose and fittings builds their product to specific tolerances and does not recommend them for use with other brands. Doing this puts your performance at risk and voids any warranty on your product.

Danfoss High Performance

Danfoss High Performance

For more than 80 years, Aeroquip Performance Products has been the number one choice of racing enthusiasts around the world. We engineer and test each hose length and fitting to stringent factors of safety and our hoses and fittings are tested to work together as an assembly ensuring a proper fit. 100% of our hose is made in the USA and all of our fittings and adapters are distributed from our warehouse in Van Wert, OH.
