FBFEPF-0437-031-50 Versilon™ by Saint Gobain | FEP-F | High Temp Food and Beverage Dispensing Tubing | 3/8" ID x 7/16" OD x .031" Wall | 50' Package Length

FBFEPF-0437-031-50 Versilon™ by Saint Gobain | FEP-F | High Temp Food and Beverage Dispensing Tubing | 3/8" ID x 7/16" OD x .031" Wall | 50' Package Length

Minimum Order Quantity: 30 Packages

$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

Saint Gobain

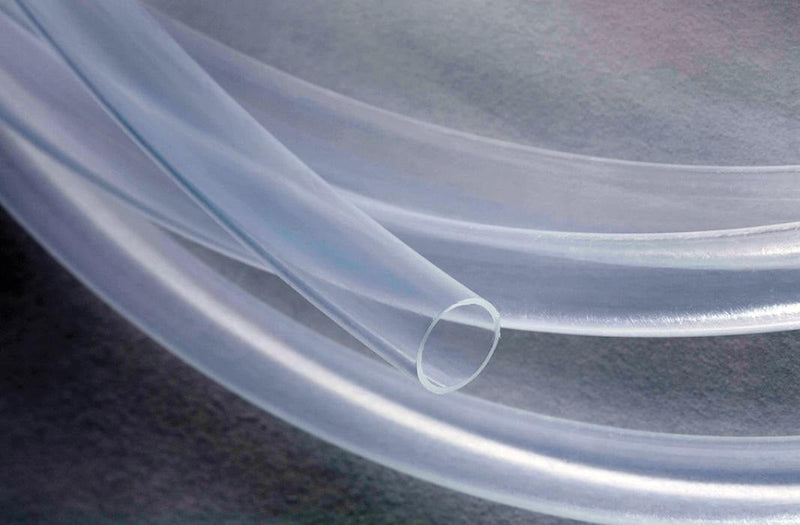

Versilon® FEP-F | High Temp Food and Beverage Dispensing Tubing

Versilon® FEP-F from Saint-Gobain is a clear, high-strength tube especially designed for high temperature or corrosive food dispensing applications.

No by the foot sales. This is a Packaged Length product.
Specifications for Variant SKU: FBFEPF-0437-031-50 Saint Gobain | 50 |
Brand: Versilon
Series: Versilon FEP-F
Hose Color(s): Clear/Semi-Clear
Internal Diameter: 0.375in
Outer Diameter: 0.4375in
Tubing Construction: Florinated Ethylene Propylene
Applicable Specs & Approvals: Applicable FDA Requirements, Regulation (EU) No 10/2011
Fluoropolymer Flexible Tubing

Versilon® FEP-F | High Temp Food and Beverage Dispensing Tubing

Versilon® FEP-F from Saint-Gobain is a clear, high-strength tube especially designed for high temperature or corrosive food dispensing applications. It resists attacks from acidic foods and flavoring oils which may degrade other plastic tubing types. It is also suitable for dispensing hot liquids such as coffee or tea with little risk of flavor alteration due to its low extractables and low moisture absorption. In addition, Versilon® FEP-F resists cracking at temperatures as low as -418°F (-250°C), making it viable for use in freezers and with dry ice.

1

What is this product used for?
  • Food and Beverage Dispensing
  • Cleaning Chemical Dispensing
2

What are the key specifications?
Tube

Fluoropolymer

Cover

Fluoropolymer

Reinforcement

None

Colors

Transparent

Maximum Recommended Operating Temp. °F (°C)

+402°F (+206°C)

Minimum Recommended Operating Temp. °F (°C)

-418°F (-250°C)

Specifications

Document of Compliance for Regulation (EU) 10/2011
Document of Compliance for FDA Regulation 21 CFR 177.1550

WARNING:

Not intended as an implant material!

3

What are the main product features?
  • Inert and transparent.
  • Low tackiness.
  • Suitable for hot or cold food and beverage dispensing.
4

Which sizes or configurations are available?
Part Number Inside
Diameter
(in.)		 Outside
Diameter
(in.)		 Wall
Thickness
(in.)		 Min. Bend
Radius
(in.)		 Max. Working
Pressure
at 73°F
(PSI)		 Length
FBFEPF-0062-015-50 1/32" 1/16" 0.016" - - 50ft
FBFEPF-0125-031-50 1/16" 1/8" 0.031" (1/32") 0.5" 196 PSI 50ft
FBFEPF-0156-031-50 3/32" 5/32" 0.031" (1/32") - - 50ft
FBFEPF-0187-031-50 3/16" 1/8" 0.031" (1/32") - - 50ft
FBFEPF-0187-062-50 1/16" 3/16" 0.062" (1/16") - - 50ft
FBFEPF-0250-031-50 3/16" 1/4" 0.031" (1/32") - - 50ft
FBFEPF-0250-047-50 5/32" 1/4" 0.047" (3/64") - - 50ft
FBFEPF-0250-062-50 1/8" 1/4" 0.062" (1/16") 0.5" 198PSI 50ft
FBFEPF-0312-031-50 1/4" 5/16" 0.031" (1/32") - - 50ft
FBFEPF-0312-062-50 3/16" 5/16" 0.062" (1/16") - - 50ft
FBFEPF-0375-031-50 5/16" 3/8" 0.031" (1/32") - - 50ft
FBFEPF-0375-062-50 1/4" 3/8" 0.062" (1/16") 1" 127 PSI 50ft
FBFEPF-0437-031-50 3/8" 7/16" 0.031" (1/32") - - 50ft
FBFEPF-0500-031-50 7/16" 1/2" 0.031" (1/32") - - 50ft
FBFEPF-0562-031-50 1/2" 9/16" 0.031" (1/32") - - 50ft
FBFEPF-0625-062-50 1/2" 5/8" 0.062" (1/16") 3" 72 PSI 50ft
FBFEPF-0750-062-50 5/8" 3/4" 0.062" (1/16") - - 50ft
FBFEPF-0875-062-50 3/4" 7/8" 0.062" (1/16") - - 50ft
FBFEPF-1000-062-50 7/8" 1" 0.062" (1/16") - - 50ft
FBFEPF-1125-062-50 1" 1-1/8" 0.062" (1/16") - - 50ft

How is this product sold?

No by the foot sales. This is a Packaged Length product.

6

Where can I find product documents?
PDF

Saint Gobain Versilon® FEP-F Data Sheet

Consult product literature, manufacturer documentation, or supporting documents for additional information.

Saint Gobain

Saint-Gobain Performance Plastics is one of the world’s leading producers of engineered, high-performance polymer products, and serves virtually every major industry across the globe. Saint-Gobain Performance Plastics businesses support these key industries with advanced technology polymer products for the most demanding applications.
