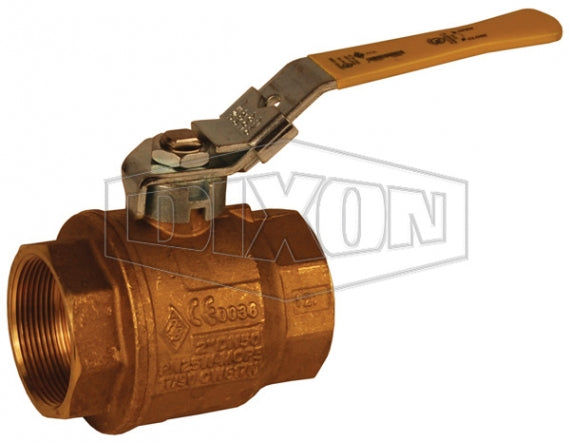

FBVL100 by Dixon Valve | Imported Ball Valve with Locking Handle | Full Port | 1" Female NPT x 1" Female NPT | Forged Brass

FBVL100 by Dixon Valve | Imported Ball Valve with Locking Handle | Full Port | 1" Female NPT x 1" Female NPT | Forged Brass

Save $37.04 Save $37.04
$92.60
$92.60 - $92.60
$92.60
$55.56
$55.56 - $55.56
$55.56

Dixon Valve & Coupling
Imported Ball Valve with Locking Handle | Forged Brass

For control of air, water, oil and gas in hose or pipe lines.
Specifications for Variant SKU: FBVL100 Dixon
Shape (Orientation): Straight
Ends Configuration: 1in Female NPT, 1in Female NPT, Some Ends Match
Material(s): Forged Brass
Seal Material(s): PTFE
Features:
  • Blow-out proof stem.
Materials:
  • PTFE seat, seal, and thrust washer.
  • Chrome-plated brass ball and plated steel handle.
Specifications:
  • Maximum temperature: 366°F (186°C).
  • Pressure ratings: 600 PSI WOG; 150 PSI working steam pressure.
Part Number Female NPT x Female NPT Port
FBVL50 1/2" Full
FBVL75 3/4" Full
FBVL100 1" Full
FBVL125 1-1/4" Full
FBVL150 1-1/2" Full
FBVL200 2" Full
FBVL250 2-1/2" Full
FBVL300 3" Full
FBVL400 4" Full
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
