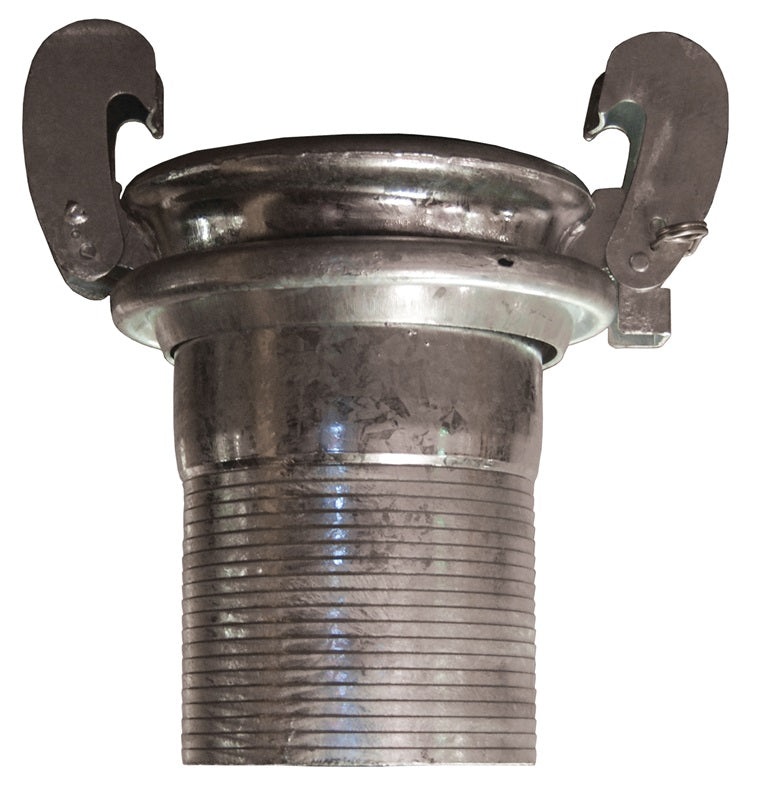

FC21212ST120 by Dixon Valve | Type A (Agri-Lock) Quick Connect Fitting | 12" Size | Female with Machined Hose Shank | Galvanized Steel

Name: FC21212ST120 by Dixon Valve | Type A (Agri-Lock) Quick Connect Fitting | 12" Size | Female with Machined Hose Shank | Galvanized Steel
Brand: Dixon
SKU: FC21212ST120 Dixon
Price: 856.96 USD
Availability: InStock

Save $571.31

$1,428.27

$1,428.27 - $1,428.27

$1,428.27

$856.96

$856.96 - $856.96

$856.96

Dixon Valve
Type A (Agri-Lock) Quick Connect Fitting | Female with Machined Hose Shank

Used primarily on irrigation and suction lines.

Specifications for Variant SKU: FC21212ST120 Dixon
Shape (Orientation):	Straight
Ends Configuration:	12in Female Agri-Lock (Bauer) - Type-A, 12in Hose Barb
Material(s):	Galvanized Steel

Features:
Agri-Lock style. Double pin locking lever for smooth closing action. Equipped with a safety pin to prevent accidental openings. Locks on the female size. Features a Dixon Combo Nipple style hose shank machined from schedule 40 pipe.
Construction:
Gasket included.
Safety Notes:
Recommended for use with steel King Crimp Sleeves. These fittings are not recommended for chemicals or any hazardous type materials where the possibility of leakage would result in health or environmental concerns.

Type A (Agri-Lock) \| Female with Machined Hose Shank

FC21210ST100	10"
FC21212ST120*	12"

* 12" supplied with M20412 lever assist bar.

Type A (Agri-Lock) \| Male with Machined Hose Shank

Part Number	Size
MC21110ST100	10"
MC21112ST120	12"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
