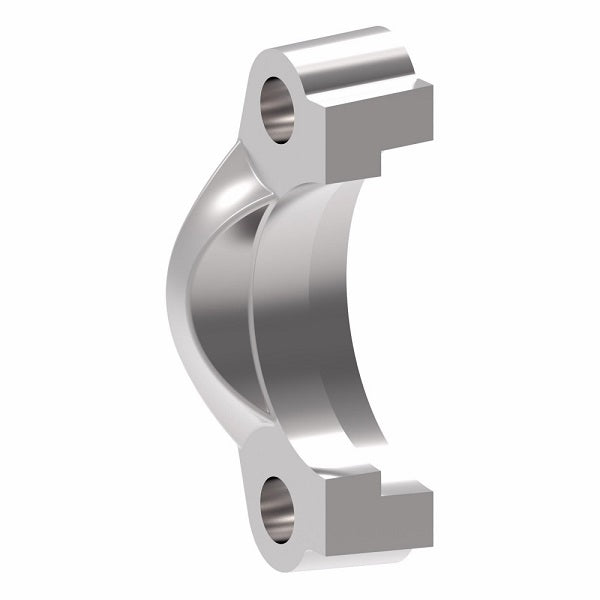

FC3425-20-449 Aeroquip by Danfoss | Code 62 Split Flange Half (1 Flange Half) | for 1-1/4" Flange Size | Steel

FC3425-20-449 Aeroquip by Danfoss | Code 62 Split Flange Half (1 Flange Half) | for 1-1/4" Flange Size | Steel

Name: FC3425-20-449 Aeroquip by Danfoss | Code 62 Split Flange Half (1 Flange Half) | for 1-1/4" Flange Size | Steel
Brand: Danfoss/Eaton
SKU: FC3425-20-449 Danfoss
Price: 19.54 USD
Availability: InStock

$19.54 - $19.54

$19.54

$19.54 - $19.54

$19.54

Aeroquip® by Danfoss
Flange Halves for SAE Code 62 Split Flange Kit (SAE J518)

Important: 2 flange halves are required for a complete assembly.
Flange halves are not sold as a pair. If you require 2 halves, set the quantity below, to 2.

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: FC3425-20-449 Danfoss
Shape (Orientation):	No Orientation
Ends Configuration:	1-1/4in Code 62 Flange
Material(s):	Steel

Technical Info:
Crimp Fitting Socket Data.PDF
Specifications:
Temperature range: -40°F to +250°F (-40°C to + 121°C)
Note:
Note: Code 62 split flange kits cannot be used with Cat flange fittings. Use existing split flanges.


Flange Halves (2 required) Part Number	Nominal Flange Size	A	B	C	Bolt torque lb.-in
FC3425-12-449	3/4"	2.00"	0.94"	0.42"	300-400
FC3425-16-449	1"	2.25"	1.10"	0.50"	500-600
FC3425-20-449	1-1/4"	2.62"	1.24"	0.60"	750-900
FC3425-24-449	1-1/2"	3.12"	1.44"	0.66"	1400-1600
FC3425-32-449	2"	3.81"	1.76"	0.78"	2400-2600
