FC425-46 Aeroquip by Danfoss | Abrasion Sleeve | 2.86" / 72.6 mm ID | Nylon

FC425-46 Aeroquip by Danfoss | Abrasion Sleeve | 2.86" / 72.6 mm ID | Nylon

$11.18 - $11.18
$11.18
$11.18 - $11.18
$11.18

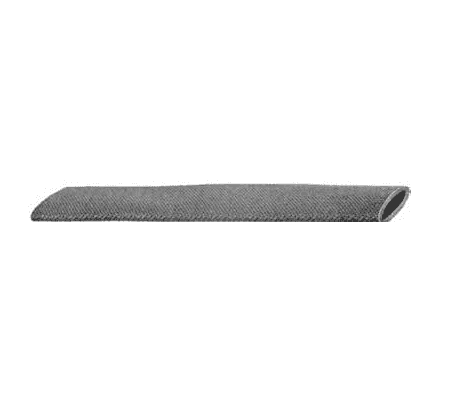

Nylon Abrasion Sleeve

Accessories - Protective Sleeves

Nylon sleeve protects hose from abrasion and allows bundling of hose lines. Meets MSHA requirements.
Specifications for Variant SKU: FC425-46 Danfoss
Part No. NominalSleeve I.D.*"B"
mm in
FC425-12 18,0 .71
FC425-16 25,4 1.00
FC425-18 28,7 1.13
FC425-20 31,7 1.25
FC425-24 40,4 1.59
FC425-28 44,4 1.75
FC425-32 52,6 2.07
FC425-38 60,4 2.38
FC425-46 72,6 2.86
FC425-54 84,8 3.34
FC425-59 93,0 3.66
*The maximum O.D. of hose fittings must be allowed for if fittings are to be covered.
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.

Shop Parts by Danfoss (Eaton - Aeroquip)
