FC5131-0808S Aeroquip by Danfoss | 2 Wire Hi-Pac Male Pipe Reusable Hose Fitting for Braided Hydraulic Hose | FC Series | -08 Male Pipe x -08 Reusable Hose End | Steel

FC5131-0808S Aeroquip by Danfoss | 2 Wire Hi-Pac Male Pipe Reusable Hose Fitting for Braided Hydraulic Hose | FC Series | -08 Male Pipe x -08 Reusable Hose End | Steel

Name: FC5131-0808S Aeroquip by Danfoss | 2 Wire Hi-Pac Male Pipe Reusable Hose Fitting for Braided Hydraulic Hose | FC Series | -08 Male Pipe x -08 Reusable Hose End | Steel
Brand: Danfoss/Eaton
SKU: FC5131-0808S Danfoss
Price: 27.02 USD
Availability: InStock

$27.02 - $27.02

$27.02

$27.02 - $27.02

$27.02

Aeroquip® by Danfoss

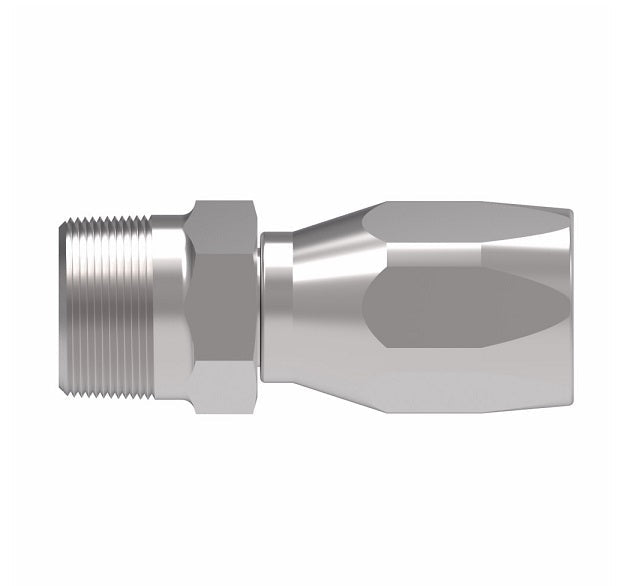

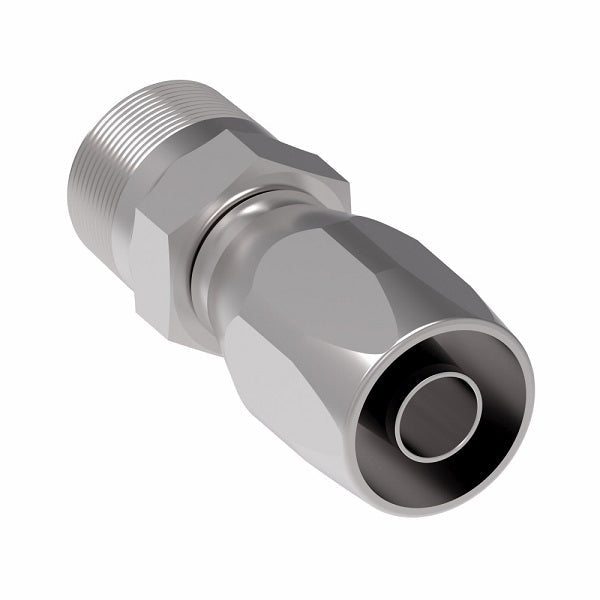

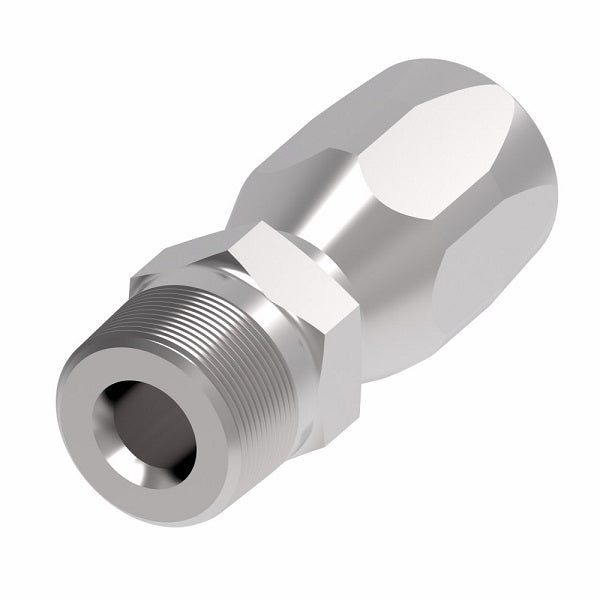

2 Wire Hi-Pac Reusable Hose Fitting for Braided Hydraulic Hose - FC Series - Male Pipe - Straight

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: FC5131-0808S Danfoss
Shape (Orientation):	Straight
Ends Configuration:	1/2in Male NPT, 1/2in Reusable Hose End
Material(s):	Steel
Compatible with the following Series:	FC310 Series \| FC510 Series

Technical Info:
Reusable Fitting Socket Data.PDF


Steel Part Number	Hose Size	Thread	A	D	EØ
FC5131-0404S	-04	1/4-18	2.46"	1.24"	0.17"
FC5131-0606S	-06	3/8-18	2.75"	1.28"	0.31"
FC5131-0808S	-08	1/2-14	3.09"	1.44"	0.39"
FC5131-1212S	-12	3/4-14	3.61"	1.74"	0.61"
FC5131-1616S	-16	1-11-1/2	4.40"	2.29"	0.82"

* FC310 only
