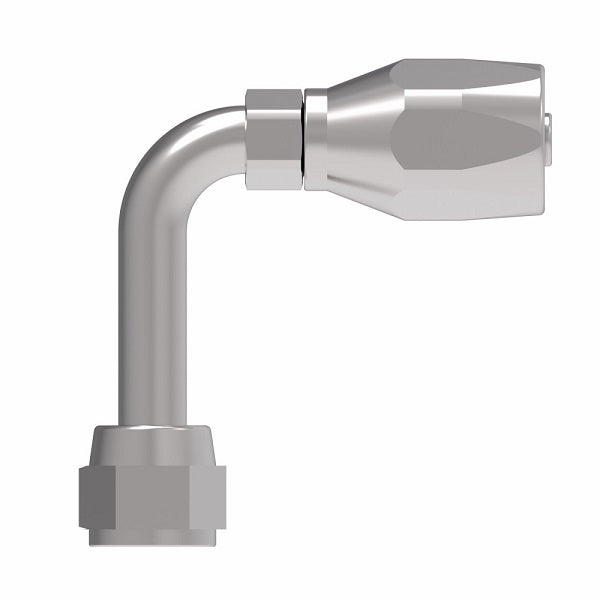

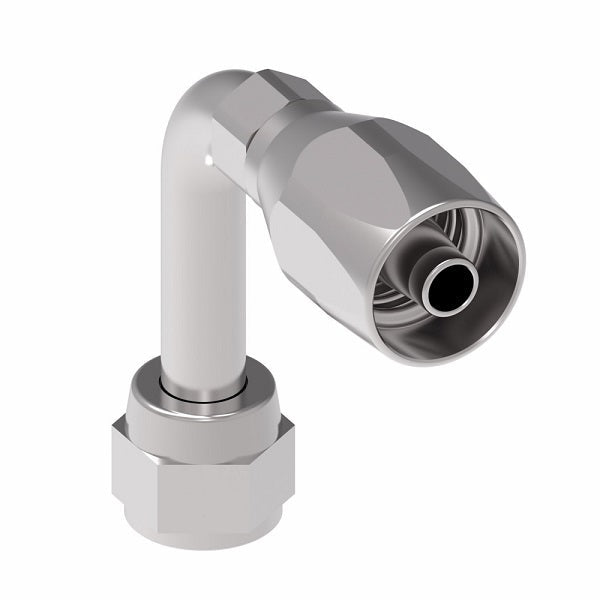

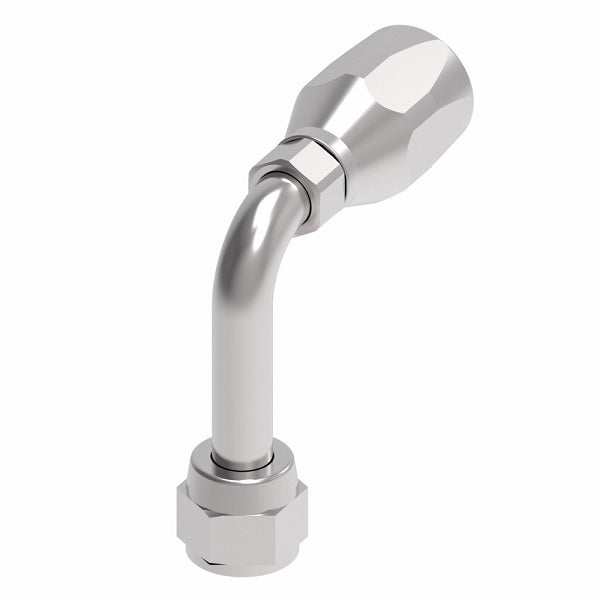

FC5142-0808S Aeroquip by Danfoss | 2 Wire Hi-Pac Female 37° JIC Swivel Long Drop 90° Elbow Reusable Hose Fitting for Braided Hydraulic Hose | FC Series | -08 Female 37° JIC Swivel -08 Reusable Hose End | Steel

FC5142-0808S Aeroquip by Danfoss | 2 Wire Hi-Pac Female 37° JIC Swivel Long Drop 90° Elbow Reusable Hose Fitting for Braided Hydraulic Hose | FC Series | -08 Female 37° JIC Swivel -08 Reusable Hose End | Steel | Pack of 10

$1,180.85 - $1,180.85

$1,180.85

$1,180.85 - $1,180.85

$1,180.85

Aeroquip® by Danfoss
2 Wire Hi-Pac Reusable Hose Fitting for Braided Hydraulic Hose - FC Series - Female 37° JIC Swivel Long Drop - 90° Elbow

(Formerly Eaton Aeroquip)

Package Quantity: 10 Units

Specifications for Variant SKU: FC5142-0808S Danfoss \| 10 \|
Shape (Orientation):	90 Degree
Ends Configuration:	1/2in Female JIC, 1/2in Reusable Hose End
Material(s):	Steel
Special Properties:	Swivel, Long Drop
Compatible with the following Series:	FC310 Series \| FC510 Series

Technical Info:
Reusable Fitting Socket Data.PDF


Steel Part Number	Hose Size	Thread	A	D	EØ	H
FC5142-0404S	-04	7/16-20	2.36"	1.15"	0.17"	1.80"
FC5142-0606S	-06	9/16-18	2.72"	1.25"	0.31"	2.18"
FC5142-0808S	-08	3/4-16	3.15"	1.50"	0.39"	2.43"
