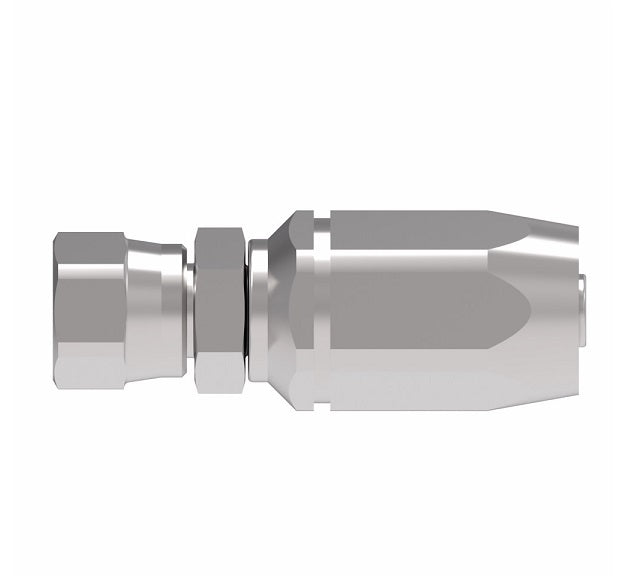

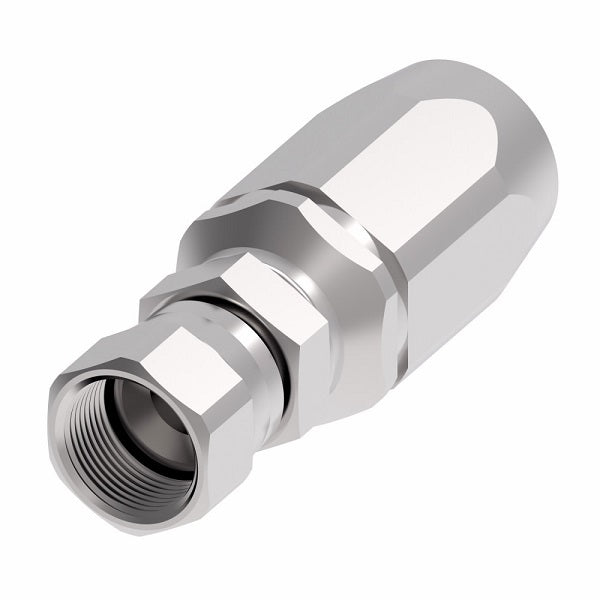

FC5988-0604S Aeroquip by Danfoss | Female 37° JIC Swivel 100R2 TTC Reusable Hose Fitting | FC Series | -06 Female 37° JIC Swivel x -04 Reusable Hose End | Steel

FC5988-0604S Aeroquip by Danfoss | Female 37° JIC Swivel 100R2 TTC Reusable Hose Fitting | FC Series | -06 Female 37° JIC Swivel x -04 Reusable Hose End | Steel

Name: FC5988-0604S Aeroquip by Danfoss | Female 37° JIC Swivel 100R2 TTC Reusable Hose Fitting | FC Series | -06 Female 37° JIC Swivel x -04 Reusable Hose End | Steel
Brand: Danfoss/Eaton
SKU: FC5988-0604S Danfoss
Price: 26.79 USD
Availability: InStock

$26.79 - $26.79

$26.79

$26.79 - $26.79

$26.79

Aeroquip® by Danfoss
100R2 TTC Reusable Hose Fitting - FC Series - Female 37° JIC Swivel - Straight

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: FC5988-0604S Danfoss
Shape (Orientation):	Straight
Ends Configuration:	3/8in Female JIC, 1/4in Reusable Hose End
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	GH793 Series

Technical Info:
Reusable Fitting Socket Data.PDF
Note:
For use with GH793 hose ONLY at SAE 100R2 pressures.


Steel Part Number	Hose Size	Thread	A	D	EØ
FC5988-0404S	-04	7/16-20	2.64"	1.47"	0.17"
FC5988-0604S	-04	9/16-18	-	-	-
FC5988-0606S	-06	9/16-18	2.98"	1.64"	0.31"
FC5988-0806S	-06	3/4-16	-	-	-
FC5988-0808S	-08	3/4-16	3.20"	1.68"	0.39"
FC5988-1008S	-08	-	-	-	-
FC5988-1212S	-12	11/16-12	3.86"	1.99"	0.61"
FC5988-1616S	-16	15/16-12	4.48"	2.43"	0.82"
